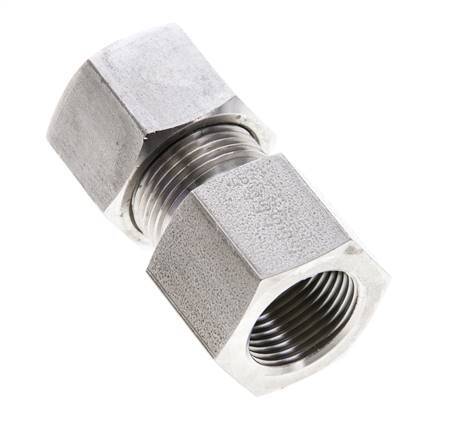

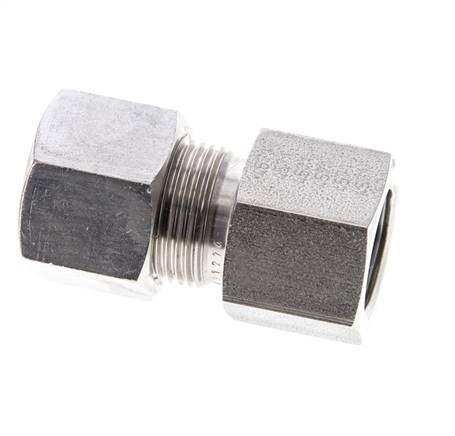

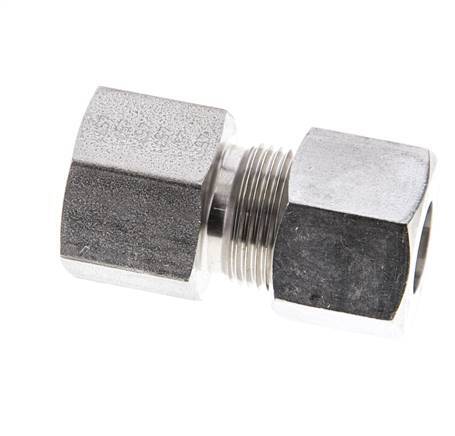

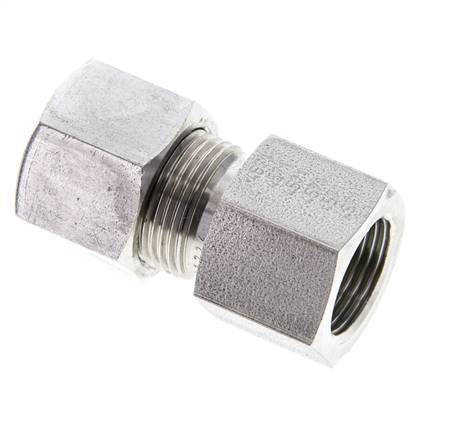

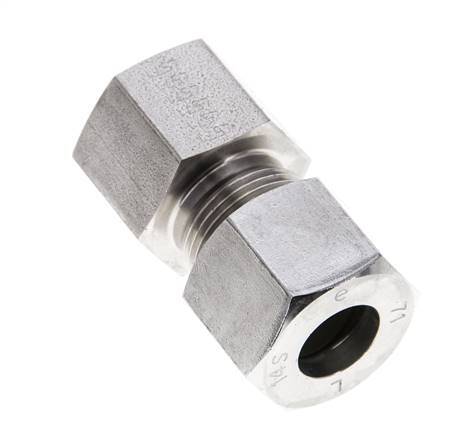

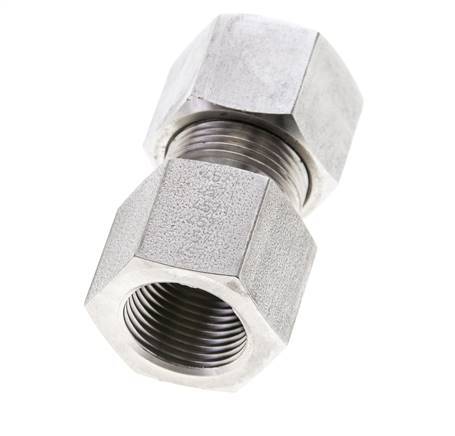

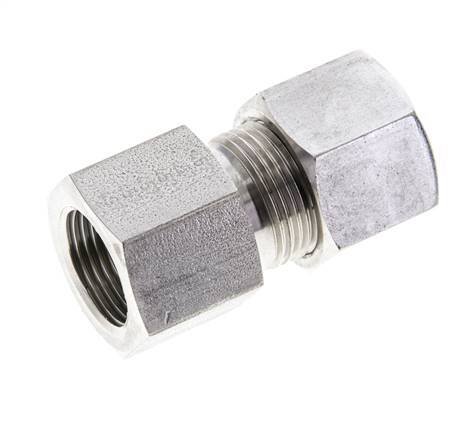

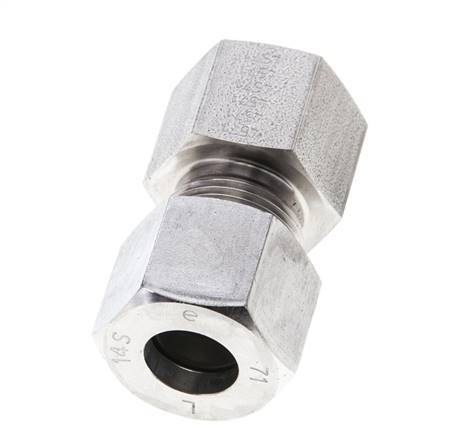

14S & M20x1.5 Stainless Steel Straight Cutting Fitting with Female Threads 630 bar ISO 8434-1

14S & M20x1.5 Stainless Steel Straight Cutting Fitting with Female Threads 630 bar ISO 8434-1
14S & M20x1.5 Stainless Steel Straight Cutting Fitting with Female Threads 630 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2B5C
Brand: Tameson

This stainless steel 1.4571 straight screwed-on screw connection is designed with one female threaded connection and one cutting ring connection port. Connection 1 is a 14 mm cutting ring with a M22x1.5 union nut. Connection 2 has female M 20x1.5 threads. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
£57.19
excl VAT
In stock +10 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 10 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 12 - 14 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This stainless steel 1.4571 straight screwed-on screw connection is designed with one female threaded connection and one cutting ring connection port. Connection 1 is a 14 mm cutting ring with a M22x1.5 union nut. Connection 2 has female M 20x1.5 threads. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Downloads

Specifications

Thread
M20 x 1.5
Union nut thread
Thread size of the union nut
M22 x 1.5
Load class (DIN 2353)
S (heavy)
Cutting ring connection (mm)
Size of the cutting ring connection
14
Connection type
Cutting ring, Inner thread metric
Material
Housing material.
Stainless steel
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
630
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-60
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
400
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Quality of material
Stainless steel (1.4571)
Material connection 1
Stainless steel
Material quality connection 1
Stainless steel (1.4571)
Material connection 2
Stainless steel
Shape
Straight
With drain
No
