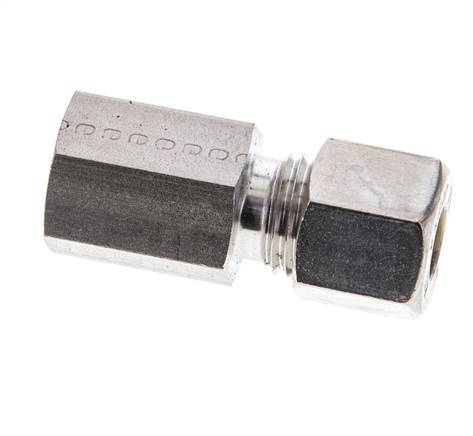

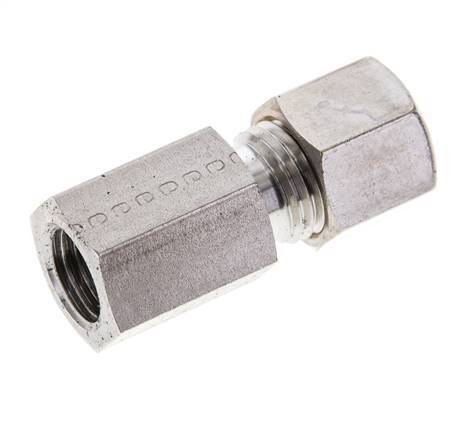

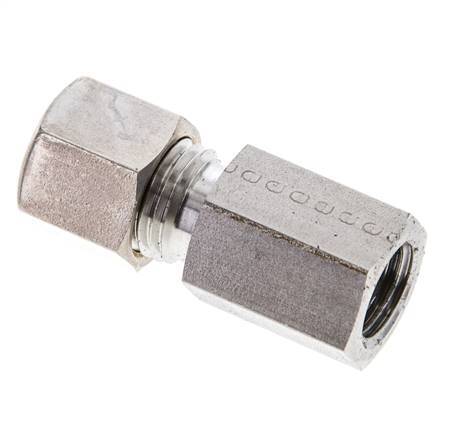

8L & M12x1.5 Stainless Steel Straight Compression Fitting with Female Threads 315 bar ISO 8434-1

Name: 8L & M12x1.5 Stainless Steel Straight Compression Fitting with Female Threads 315 bar ISO 8434-1
Brand: Tameson
SKU: F2B5K
Price: 27.56 GBP
Availability: InStock

Image may vary slightly

Reference: F2B5K

Brand: Tameson

This stainless steel 1.4571 straight screwed-on screw connection is designed with one female threaded connection and one compression ring connection p

View all

Regular price: £27.56

excl VAT

Quantity

In stock Ships in 2d On request On request

0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Shipping to United Kingdom: £6.95

Free for orders > £75.00

Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description

Specifications

Description

This stainless steel 1.4571 straight screwed-on screw connection is designed with one female threaded connection and one compression ring connection port. Connection 1 is a 8 mm compression ring with a M14x1.5 union nut. Connection 2 has female M 12x1.5 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

Adheres to DIN EN ISO 8434-1 (DIN 2353)
Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
Suitable for use in gas and water area
Stainless steel material has better chemical resistance than other materials
Suitable for hydraulic applications
