Image may vary slightly
See specifications for accurate information.
Reference: F2B8X
Brand: Tameson

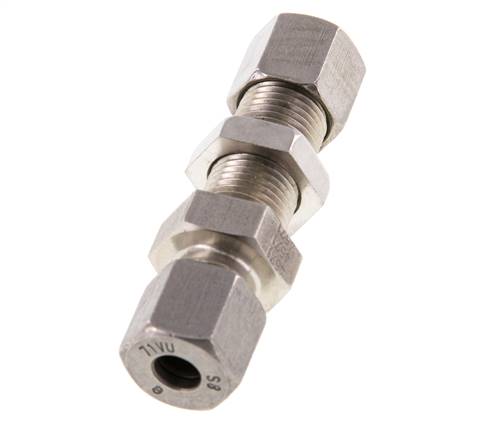

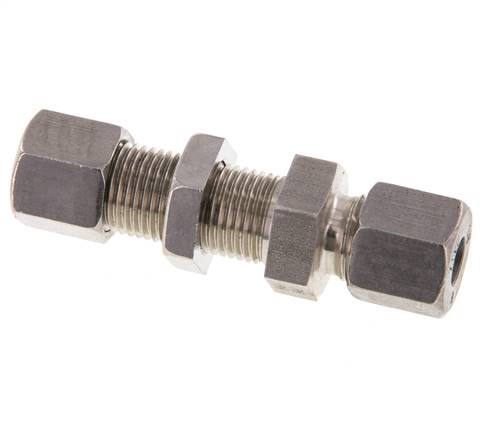

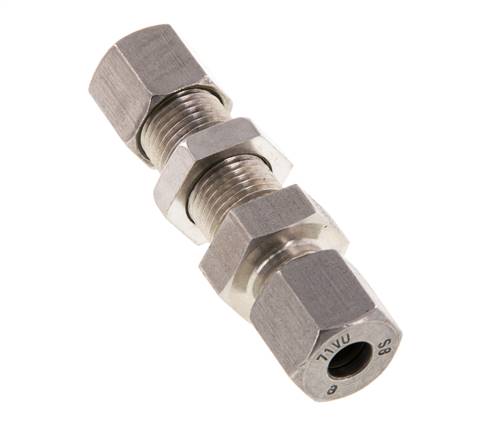

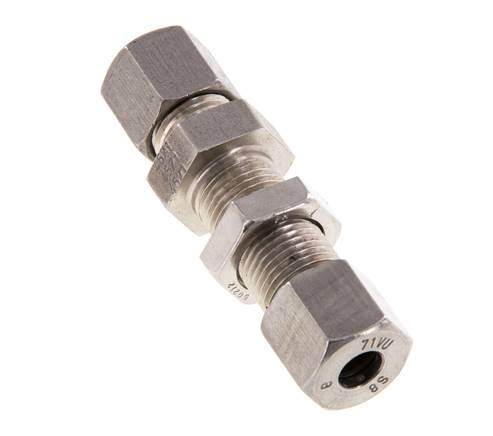

This stainless steel 1.4571 straight screw connection is designed with two cutting ring connection points. Connection 1 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 8 mm cutting ring with a M16x1.5 union nut. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
£47.72
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 11 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

This stainless steel 1.4571 straight screw connection is designed with two cutting ring connection points. Connection 1 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 8 mm cutting ring with a M16x1.5 union nut. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Specifications
