Image may vary slightly
See specifications for accurate information.
Reference: F2B93
Brand: Tameson

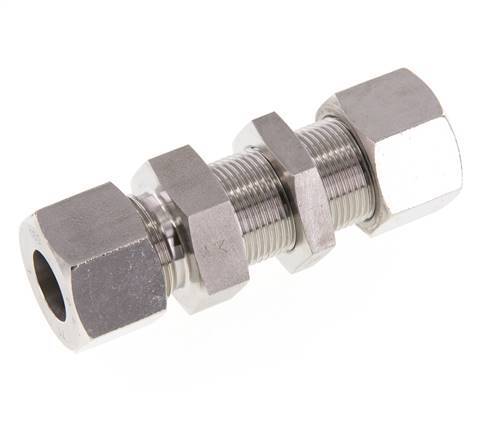

This stainless steel 1.4571 straight screw connection is designed with two cutting ring connection points. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 is a 16 mm cutting ring with a M24x1.5 union nut. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
£83.65
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

This stainless steel 1.4571 straight screw connection is designed with two cutting ring connection points. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 is a 16 mm cutting ring with a M24x1.5 union nut. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Downloads

Specifications

Union nut thread
Thread size of the union nut
M24 x 1.5
Load class (DIN 2353)
S (heavy)
Cutting ring connection (mm)
Size of the cutting ring connection
16
Connection type
Cutting ring
Material
Housing material.
Stainless steel
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
400
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-60
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
400
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Fitting features
Bulkhead
Bulkhead nut
M24 x 1.5
Quality of material
Stainless steel (1.4571)
Material connection 1
Stainless steel
Material quality connection 1
Stainless steel (1.4571)
Material connection 2
Stainless steel
Shape
Straight
With drain
No
