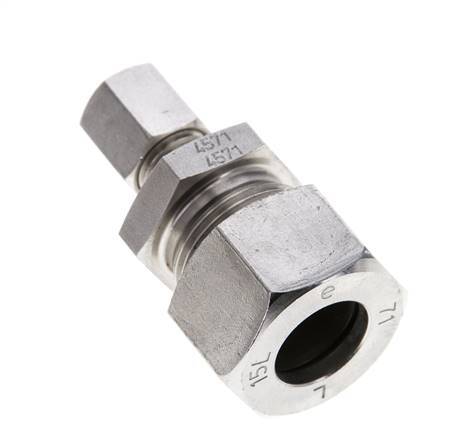

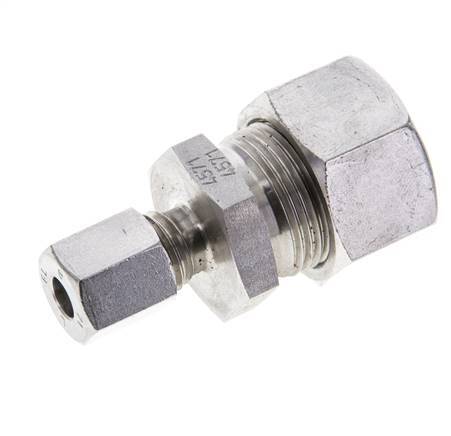

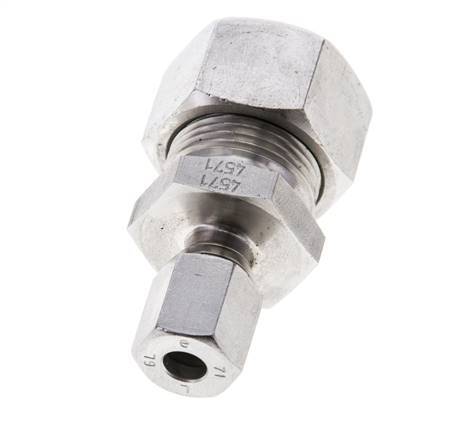

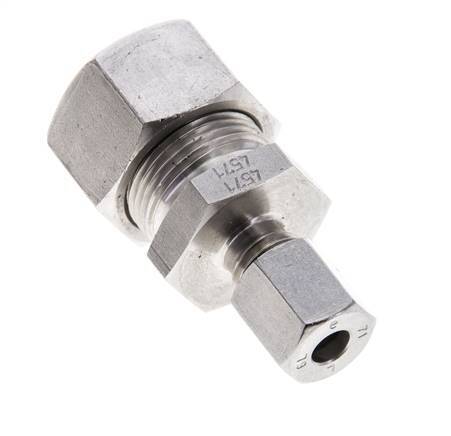

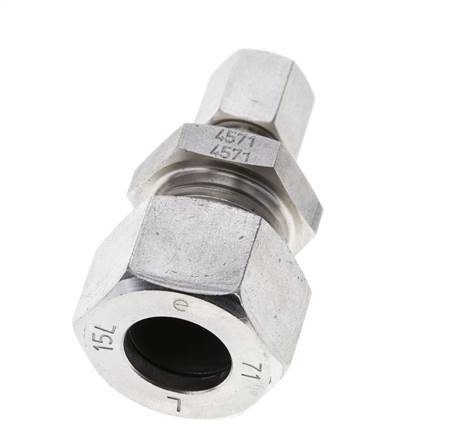

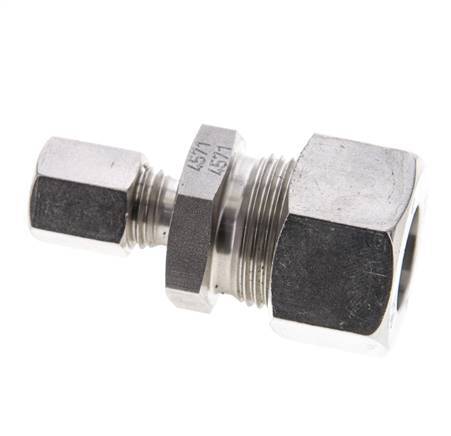

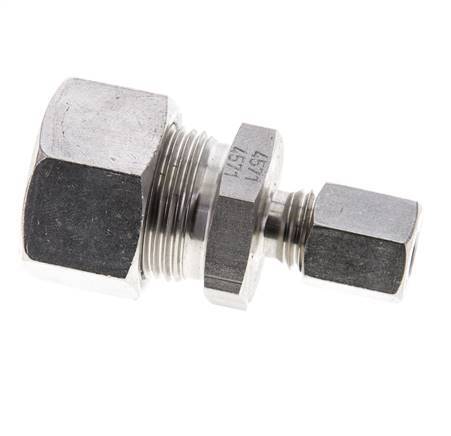

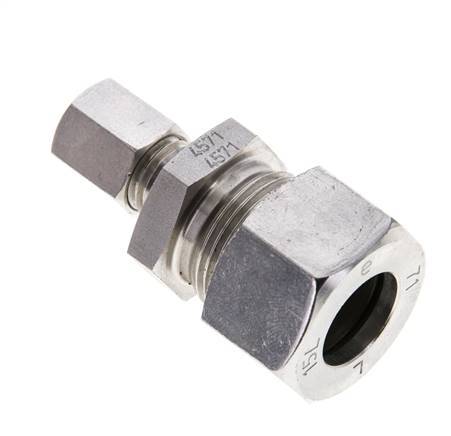

6L & 15L Stainless Steel Straight Cutting Fitting 315 bar ISO 8434-1

6L & 15L Stainless Steel Straight Cutting Fitting 315 bar ISO 8434-1
6L & 15L Stainless Steel Straight Cutting Fitting 315 bar ISO 8434-1

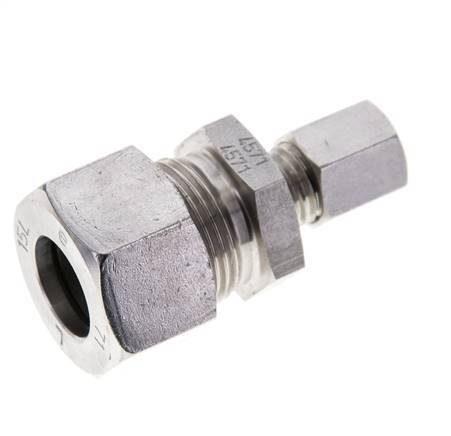

Image may vary slightly
See specifications for accurate information.
Reference: F2BBC
Brand: Tameson

This stainless steel 1.4571 straight screw connection is designed with two cutting ring connection points. Connection 1 is a 15 mm cutting ring with a M22x1.5 union nut. Connection 2 is a 6 mm cutting ring with a M12x1.5 union nut. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
£43.03
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

This stainless steel 1.4571 straight screw connection is designed with two cutting ring connection points. Connection 1 is a 15 mm cutting ring with a M22x1.5 union nut. Connection 2 is a 6 mm cutting ring with a M12x1.5 union nut. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Downloads

Specifications

Union nut thread
Thread size of the union nut
M12 x 1.5, M22 x 1.5
Load class (DIN 2353)
L (light)
Cutting ring connection (mm)
Size of the cutting ring connection
15
Cutting ring connection smaller (mm)
6
Connection type
Cutting ring
Material
Housing material.
Stainless steel
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
315
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-60
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
400
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Quality of material
Stainless steel (1.4571)
Material connection 1
Stainless steel
Material quality connection 1
Stainless steel (1.4571)
Material connection 2
Stainless steel
Shape
Straight
With drain
No
