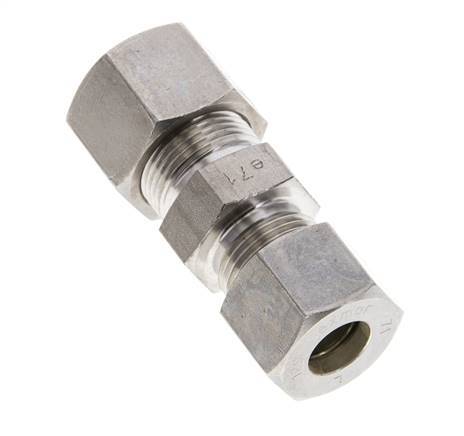

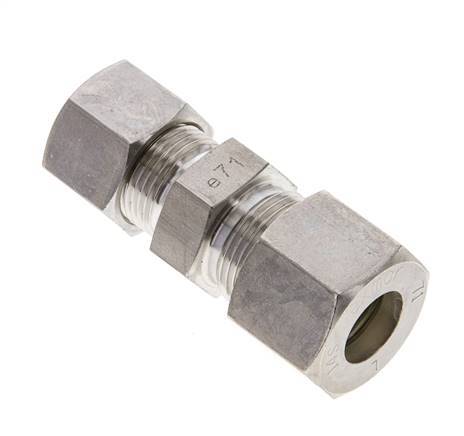

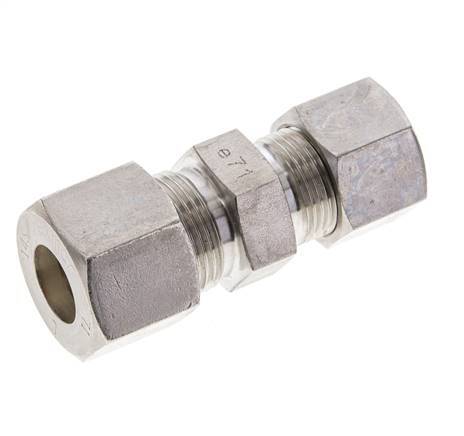

12S & 14S Stainless Steel Straight Compression Fitting 400 bar ISO 8434-1

Name: 12S & 14S Stainless Steel Straight Compression Fitting 400 bar ISO 8434-1
Brand: Tameson
SKU: F2BDE
Price: 58.08 GBP
Availability: InStock

Image may vary slightly

Reference: F2BDE

Brand: Tameson

This stainless steel 1.4571 straight screw connection is designed with two compression ring connection points. Connection 1 is a 14 mm compression rin

View all

Regular price: £58.08

excl VAT

Quantity

In stock Ships in 2d On request On request

0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Shipping to United Kingdom: £6.95

Free for orders > £75.00

Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description

Specifications

Description

This stainless steel 1.4571 straight screw connection is designed with two compression ring connection points. Connection 1 is a 14 mm compression ring with a M22x1.5 union nut. Connection 2 is a 12 mm compression ring with a M20x1.5 union nut. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

Adheres to DIN EN ISO 8434-1 (DIN 2353)
Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
Suitable for use in gas and water area
Stainless steel material has better chemical resistance than other materials
Suitable for hydraulic applications
