12S & G3/8'' Stainless Steel Elbow Compression Fitting with Male Threads 400 bar Adjustable ISO 8434-1

Name: 12S & G3/8'' Stainless Steel Elbow Compression Fitting with Male Threads 400 bar Adjustable ISO 8434-1
Brand: Tameson
SKU: F2BJK
Price: 92.19 GBP
Availability: InStock

Image may vary slightly

Reference: F2BJK

Brand: Tameson

This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one compression ring connection port. It has a

View all

Regular price: £92.19

excl VAT

Quantity

In stock Ships in 2d On request On request

0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 22 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Shipping to United Kingdom: Free

Free for orders > £75.00

Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description

Specifications

Description

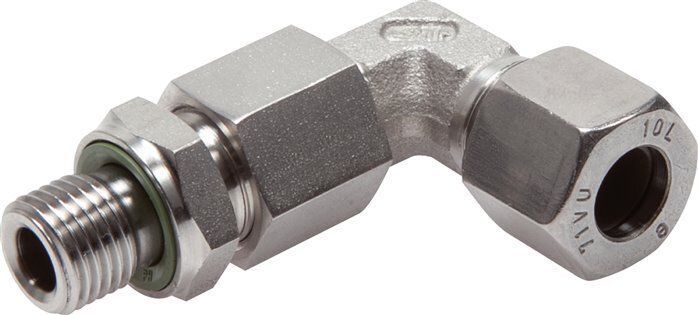

This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one compression ring connection port. It has an adjustable connection. Connection 1 is a 12 mm compression ring with a M20x1.5 union nut. Connection 2 has male G 3/8 inch threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
