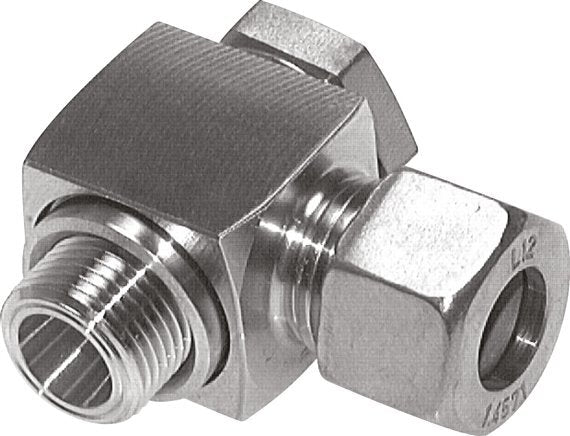

15L & M18x1.5 Stainless Steel Swivel Joint Compression Fitting with Male Threads 315 bar Rotatable ISO 8434-1

15L & M18x1.5 Stainless Steel Swivel Joint Compression Fitting with Male Threads 315 bar Rotatable ISO 8434-1
15L & M18x1.5 Stainless Steel Swivel Joint Compression Fitting with Male Threads 315 bar Rotatable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2BNC
Brand: Tameson
This stainless steel 1.4571 elbow swivel joint is designed with one male threaded connection and one compression ring connection port. The thread conn
View all
£212.53
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00 (excl VAT)
Expected delivery in 4 - 5 business days
Description
Specifications

Description

This stainless steel 1.4571 elbow swivel joint is designed with one male threaded connection and one compression ring connection port. The thread connection is rotatable. Connection 1 is a 15 mm compression ring with a M22x1.5 union nut. Connection 2 has male M 18x1.5 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Thread connection is rotatable
  • Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for use in gas and water area
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Cons:

  • Since it has a compression ring connection, it can only be used once

Specifications
