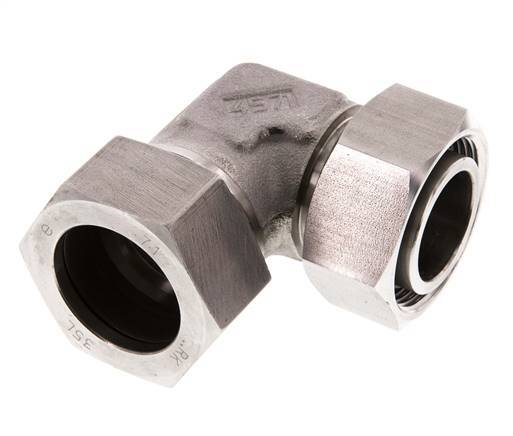

35L Stainless Steel Elbow Cutting Fitting with Swivel 160 bar FKM Adjustable ISO 8434-1
This stainless steel 1.4571 elbow screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 35 mm cutting ring with a M45x2 union nut. Connection 2 has a 35 mm swivel tube connection. The seal material is FKM. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £279.12
Description
This stainless steel 1.4571 elbow screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 35 mm cutting ring with a M45x2 union nut. Connection 2 has a 35 mm swivel tube connection. The seal material is FKM. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
