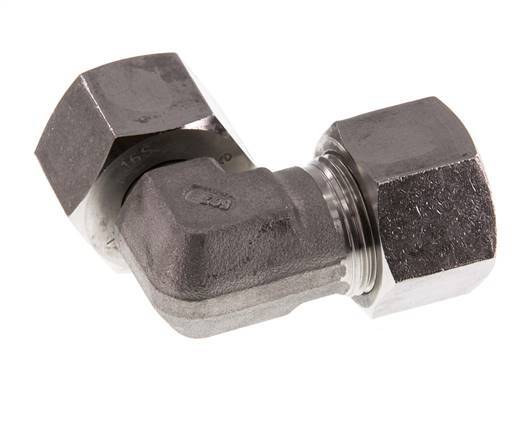

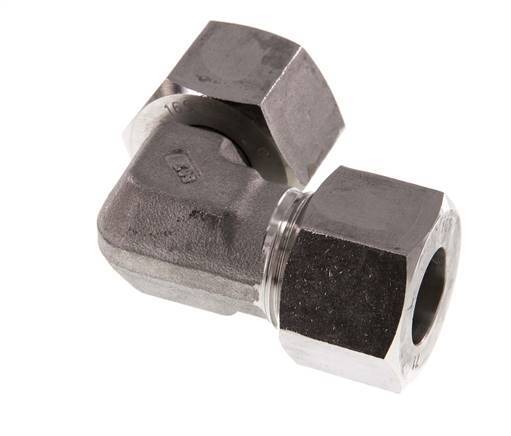

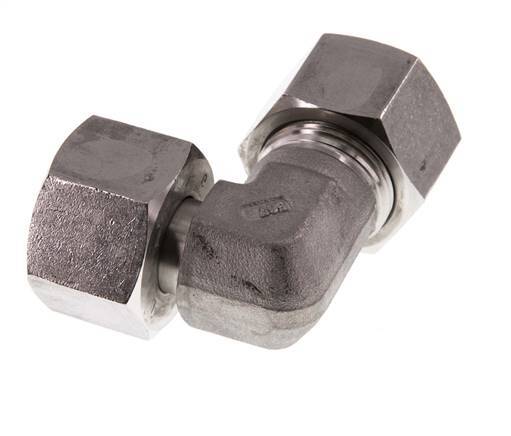

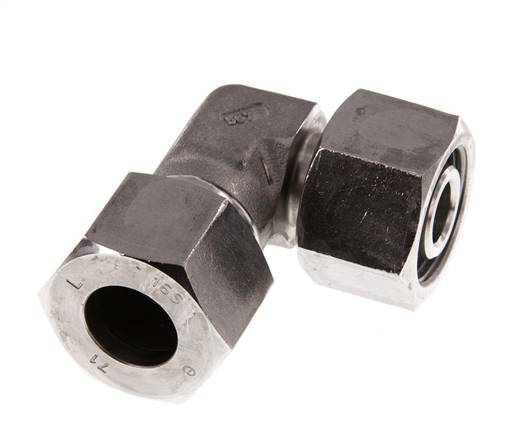

16S Stainless Steel Elbow Cutting Fitting with Swivel 400 bar FKM Adjustable ISO 8434-1
This stainless steel 1.4571 elbow screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 has a 16 mm swivel tube connection. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £90.28
Description
This stainless steel 1.4571 elbow screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 has a 16 mm swivel tube connection. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
