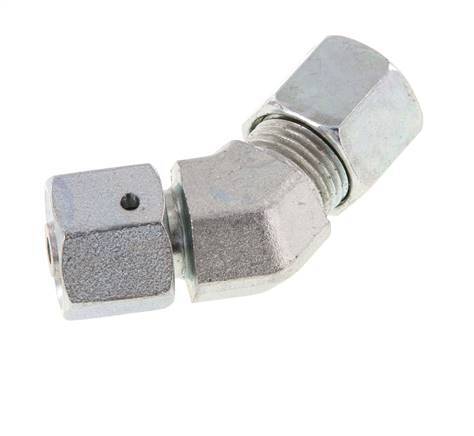

8S Zink plated Steel 45deg Elbow Cutting Fitting with Swivel 630 bar NBR O-ring Sealing Cone Adjustable ISO 8434-1
This zink plated steel elbow screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 2 has a 8 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is NBR. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £13.78
Description
This zink plated steel elbow screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 2 has a 8 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is NBR. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- With O-ring and sealing cone
- Suitable for hydraulic applications
