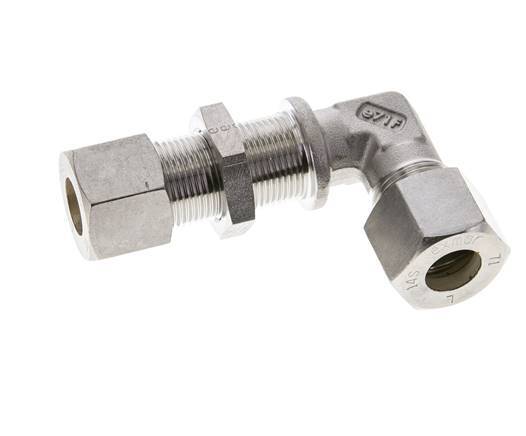

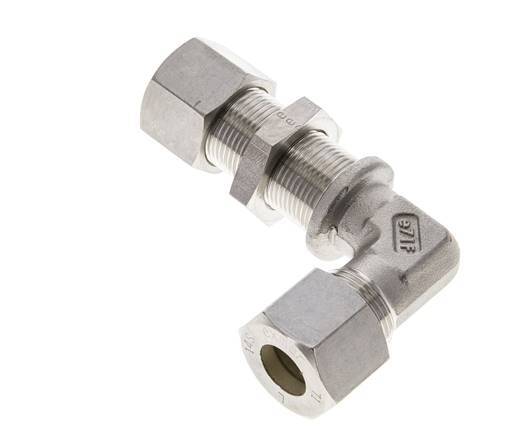

14S Stainless Steel Elbow Compression Fitting Bulkhead 400 bar ISO 8434-1
This stainless steel 1.4571 elbow screw connection is designed with two compression ring connection points. Connection 1 is a 14 mm compression ring with a M22x1.5 union nut. Connection 2 is a 14 mm compression ring with a M22x1.5 union nut. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £121.44
Description
This stainless steel 1.4571 elbow screw connection is designed with two compression ring connection points. Connection 1 is a 14 mm compression ring with a M22x1.5 union nut. Connection 2 is a 14 mm compression ring with a M22x1.5 union nut. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
