4LL & R1/8'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1

4LL & R1/8'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1
4LL & R1/8'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1
4LL & R1/8'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1
4LL & R1/8'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1
4LL & R1/8'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1
4LL & R1/8'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1
4LL & R1/8'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1
4LL & R1/8'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2BY8
Brand: Tameson
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Con
View all
Regular price
£51.37
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 21 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Related products

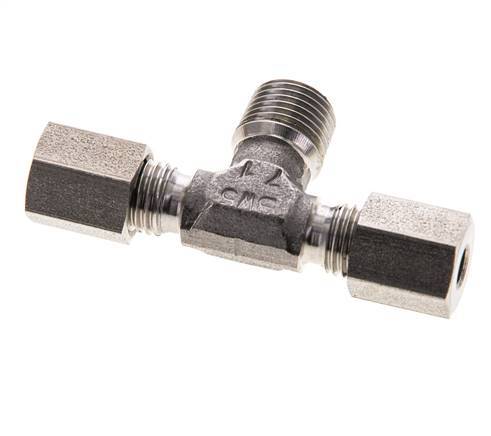

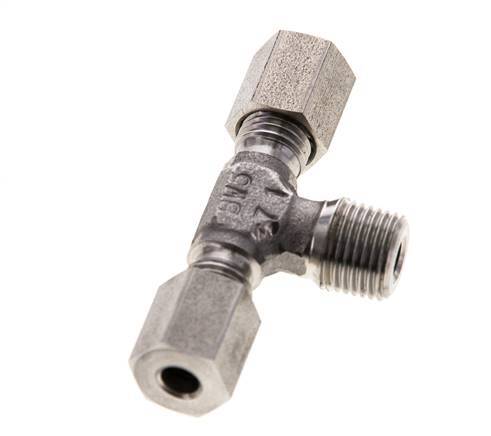

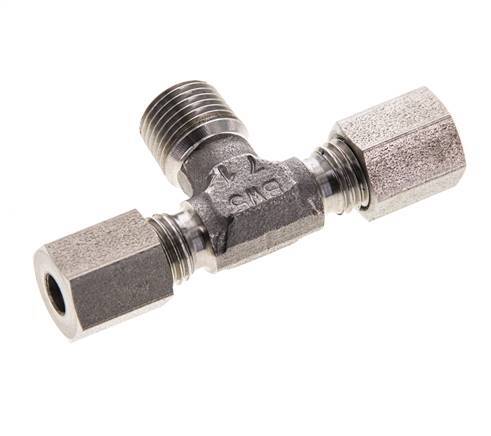

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 4 mm cutting ring with a M8x1 union nut. Connection 2 is a 4 mm cutting ring with a M8x1 union nut. Connection 3 has male R 1/8 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications
