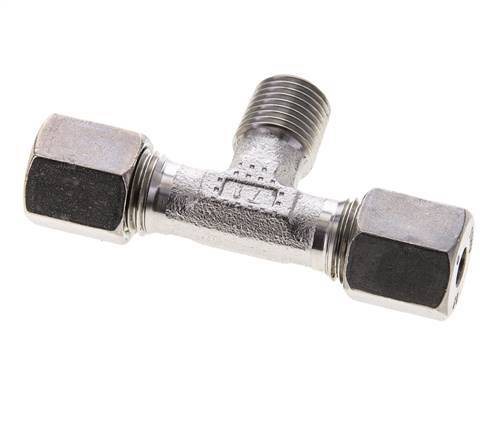

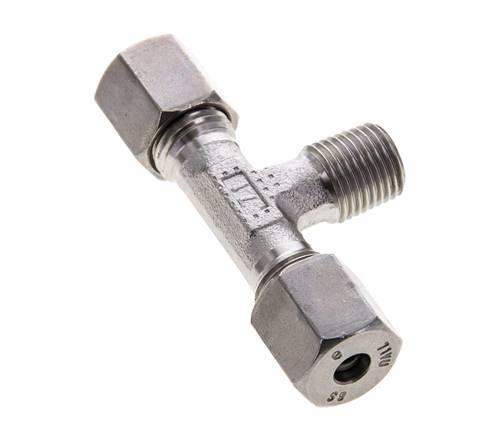

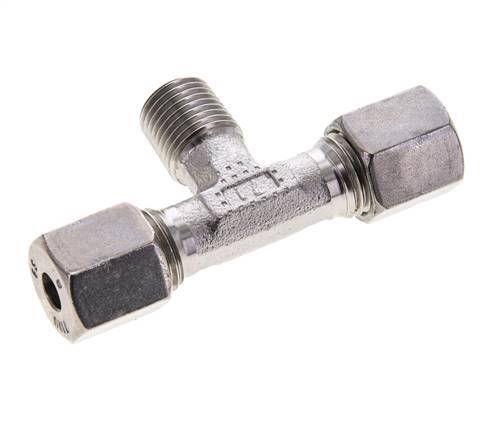

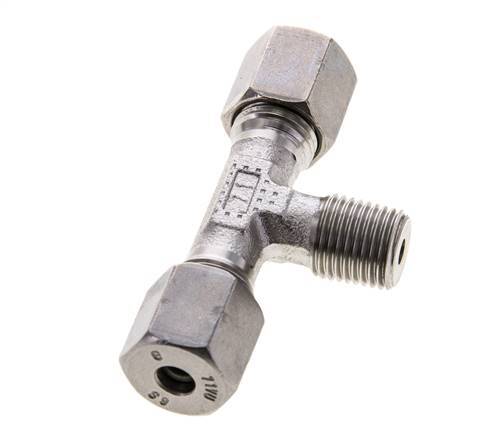

6S & R1/4'' Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 630 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2BYQ
Brand:
Tameson
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Con
- Regular price
- £56.29
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days
Description
Specifications
Related products
Description
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 6 mm cutting ring with a M14x1.5 union nut. Connection 2 is a 6 mm cutting ring with a M14x1.5 union nut. Connection 3 has male R 1/4 inch threads. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
