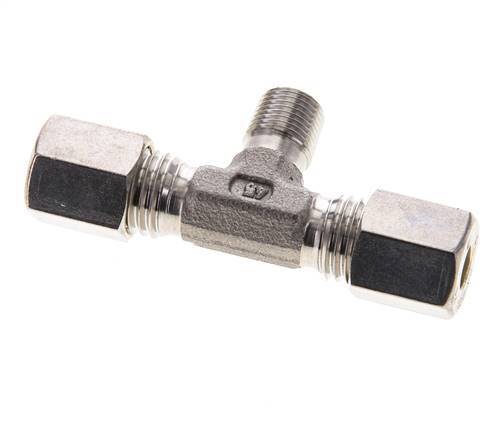

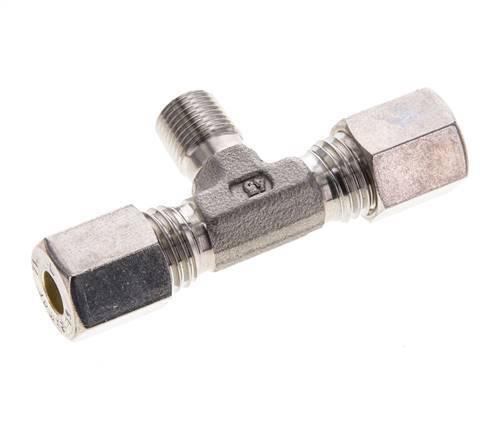

6L & R1/8'' Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar ISO 8434-1

6L & R1/8'' Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar ISO 8434-1
6L & R1/8'' Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar ISO 8434-1
6L & R1/8'' Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar ISO 8434-1
6L & R1/8'' Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar ISO 8434-1
6L & R1/8'' Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar ISO 8434-1
6L & R1/8'' Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar ISO 8434-1
6L & R1/8'' Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar ISO 8434-1
6L & R1/8'' Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2BZ2
Brand: Tameson
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a T-shape.
View all
Regular price
£48.32
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 6 mm compression ring with a M12x1.5 union nut. Connection 2 is a 6 mm compression ring with a M12x1.5 union nut. Connection 3 has male R 1/8 inch threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for use in gas and water area
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Cons:

  • Since it has a compression ring connection, it can only be used once
