Image may vary slightly
See specifications for accurate information.
Reference: F2BZD
Brand: Tameson

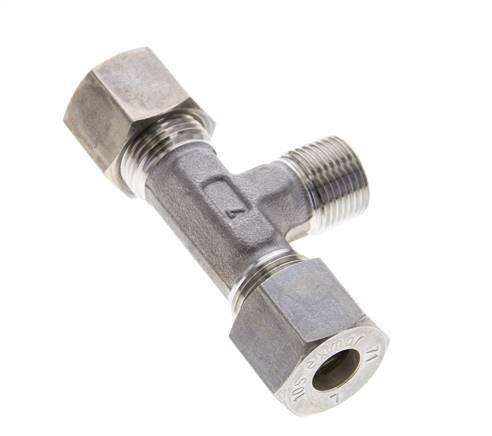

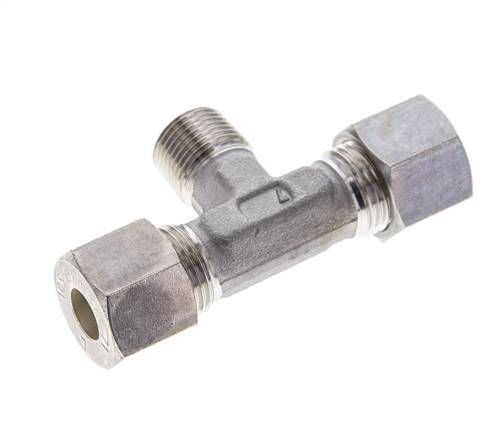

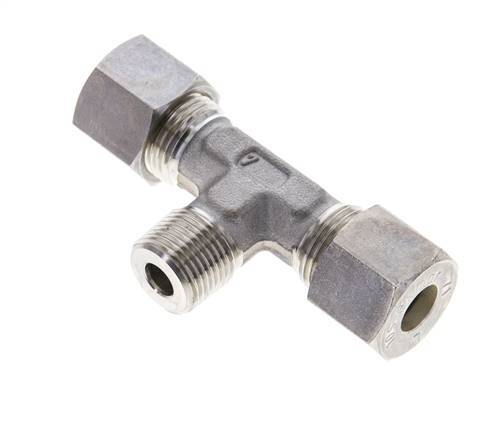

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a T-shape.
View all
£75.25
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 110 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 10 mm compression ring with a M18x1.5 union nut. Connection 2 is a 10 mm compression ring with a M18x1.5 union nut. Connection 3 has male R 3/8 inch threads. The maximum pressure is 450 bar (6525 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for use in gas and water area
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Cons:

  • Since it has a compression ring connection, it can only be used once

Specifications
