8L & M12x1.5 Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar Adjustable ISO 8434-1
- Regular price
- £92.80
Description

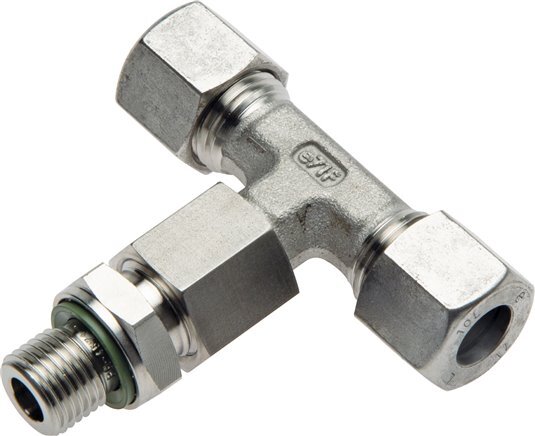

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. It has an adjustable connection. Connection 1 is a 8 mm compression ring with a M14x1.5 union nut. Connection 2 is a 8 mm compression ring with a M14x1.5 union nut. Connection 3 has male M 12x1.5 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
