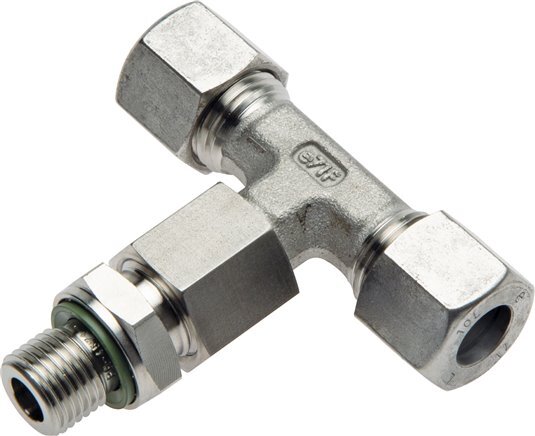

6S & M12x1.5 Stainless Steel T-Shape Tee Compression Fitting with Male Threads 500 bar Adjustable ISO 8434-1

6S & M12x1.5 Stainless Steel T-Shape Tee Compression Fitting with Male Threads 500 bar Adjustable ISO 8434-1
6S & M12x1.5 Stainless Steel T-Shape Tee Compression Fitting with Male Threads 500 bar Adjustable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2C34
Brand: Tameson
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a T-shape.
View all
£106.15
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. It has an adjustable connection. Connection 1 is a 6 mm compression ring with a M14x1.5 union nut. Connection 2 is a 6 mm compression ring with a M14x1.5 union nut. Connection 3 has male M 12x1.5 threads. The maximum pressure is 500 bar (7250 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • It has adjustable connection
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Specifications
