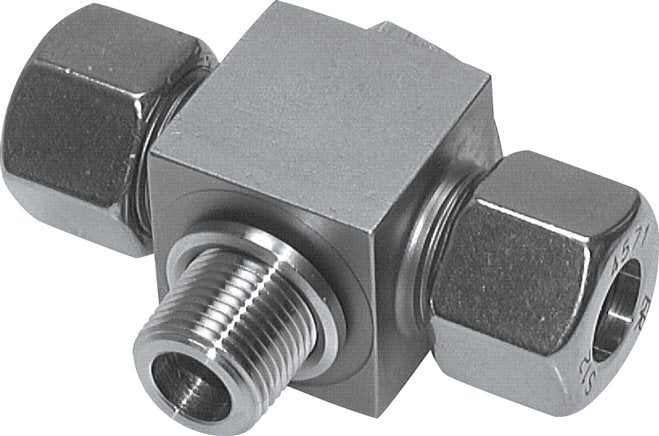

6L & M10x1 Stainless Steel Tee Swivel Joint Compression Fitting with Male Threads 315 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2C6E
Brand:
Tameson
This stainless steel 1.4571 Tee swivel joint is designed with one male threaded connection and two compression ring connection ports in a T-shape. Con
- Regular price
- £140.63
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 2 - 4 business days
Description
Specifications
Description
This stainless steel 1.4571 Tee swivel joint is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 6 mm compression ring with a M12x1.5 union nut. Connection 2 is a 6 mm compression ring with a M12x1.5 union nut. Connection 3 has male M 10x1 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
