22L & M26x1.5 Stainless Steel Tee Swivel Joint Compression Fitting with Male Threads 160 bar ISO 8434-1

22L & M26x1.5 Stainless Steel Tee Swivel Joint Compression Fitting with Male Threads 160 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2C6M
Brand: Tameson
This stainless steel 1.4571 Tee swivel joint is designed with one male threaded connection and two compression ring connection ports in a T-shape. Con
View all
Regular price
£763.91
excl VAT

In stock Ships in 0d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 2 - 4 business days

Description
Specifications

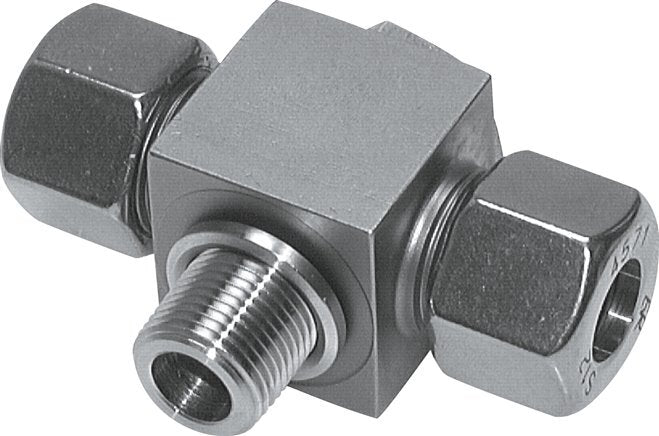

This stainless steel 1.4571 Tee swivel joint is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 22 mm compression ring with a M30x2 union nut. Connection 2 is a 22 mm compression ring with a M30x2 union nut. Connection 3 has male M 26x1.5 threads. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for use in gas and water area
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Cons:

  • Since it has a compression ring connection, it can only be used once
