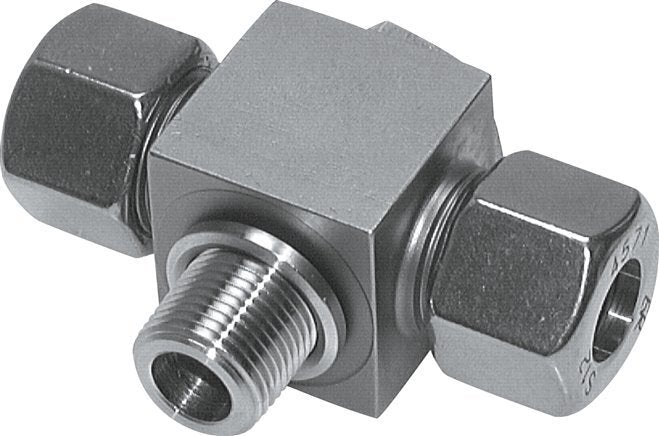

28L & G1'' Stainless Steel Tee Swivel Joint Cutting Fitting with Male Threads 160 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2C7S
Brand:
Tameson
This stainless steel 1.4571 Tee swivel joint is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connect
- Regular price
- £1,008.68
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 2 - 4 business days
Description
Specifications
Description
This stainless steel 1.4571 Tee swivel joint is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 28 mm cutting ring with a M36x2 union nut. Connection 2 is a 28 mm cutting ring with a M36x2 union nut. Connection 3 has male G 1 inch threads. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
