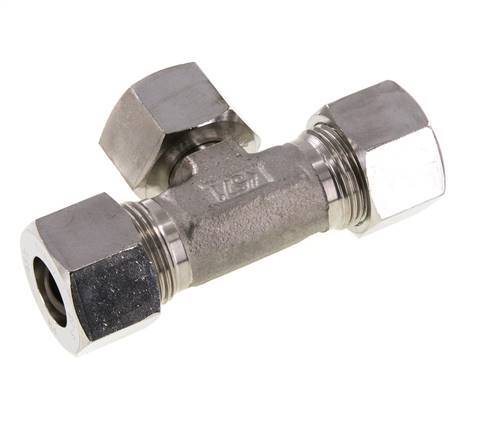

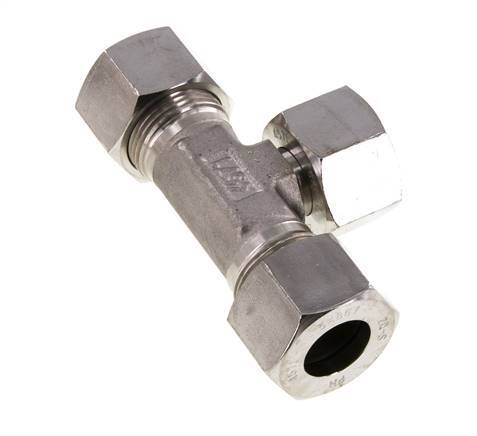

20S Stainless Steel T-Shape Tee Cutting Fitting with Swivel 400 bar Adjustable ISO 8434-1
This stainless steel 1.4571 Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 20 mm cutting ring with a M30x2 union nut. Connection 2 is a 20 mm cutting ring with a M30x2 union nut. Connection 3 has a 20 mm swivel tube connection. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £188.40
Description
This stainless steel 1.4571 Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 20 mm cutting ring with a M30x2 union nut. Connection 2 is a 20 mm cutting ring with a M30x2 union nut. Connection 3 has a 20 mm swivel tube connection. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
