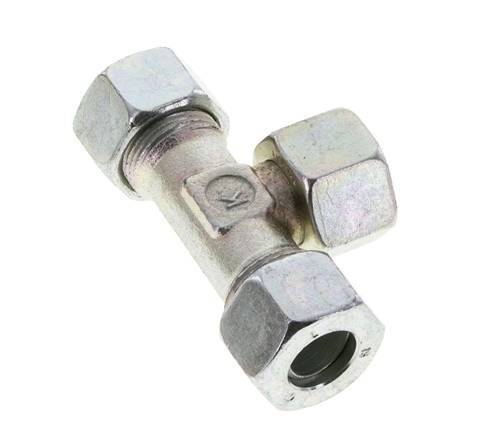

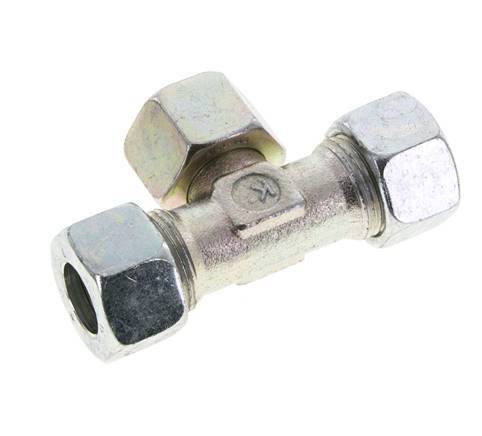

15L Zink plated Steel T-Shape Tee Cutting Fitting with Swivel 315 bar NBR Adjustable ISO 8434-1
This zink plated steel Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 15 mm cutting ring with a M22x1.5 union nut. Connection 2 is a 15 mm cutting ring with a M22x1.5 union nut. Connection 3 has a 15 mm swivel tube connection. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £18.82
Description
This zink plated steel Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 15 mm cutting ring with a M22x1.5 union nut. Connection 2 is a 15 mm cutting ring with a M22x1.5 union nut. Connection 3 has a 15 mm swivel tube connection. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Suitable for hydraulic applications
