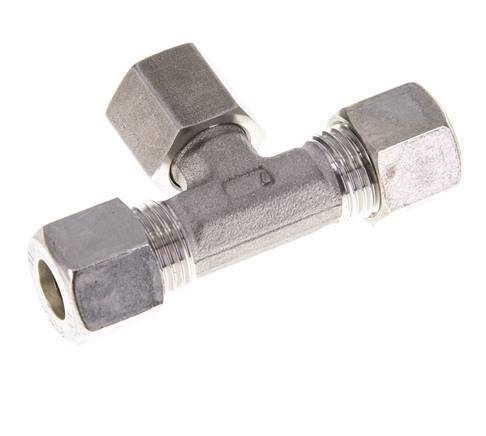

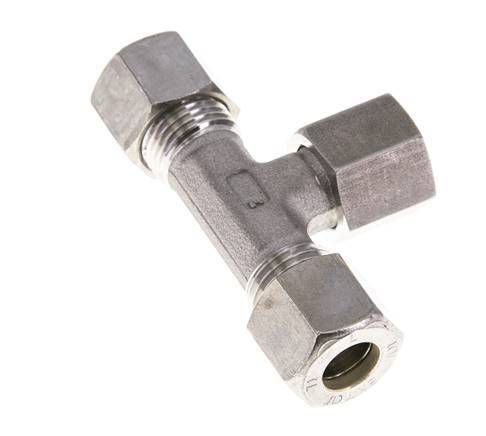

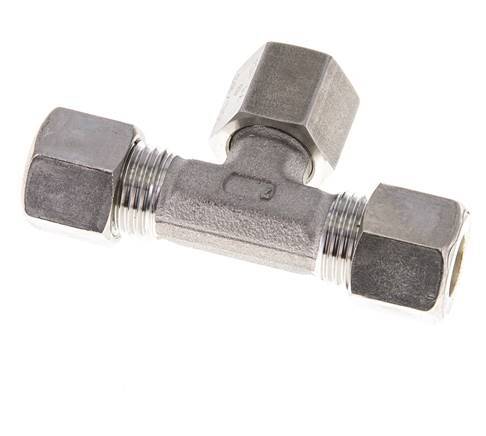

10L Stainless Steel T-Shape Tee Compression Fitting with Swivel 315 bar FKM Adjustable ISO 8434-1
This stainless steel 1.4571 Tee screw connection is designed with compression ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 10 mm compression ring with a M16x1.5 union nut. Connection 2 is a 10 mm compression ring with a M16x1.5 union nut. Connection 3 has a 10 mm swivel tube connection. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £78.85
Description
This stainless steel 1.4571 Tee screw connection is designed with compression ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 10 mm compression ring with a M16x1.5 union nut. Connection 2 is a 10 mm compression ring with a M16x1.5 union nut. Connection 3 has a 10 mm swivel tube connection. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
