14S & M20x1.5 (con) Stainless Steel Right Angle Tee Compression Fitting with Male Threads 400 bar ISO 8434-1
Notice: This product will be discontinued in the future
Image may vary slightly
See specifications for accurate information.
Reference:
F2CFV
Brand:
Tameson

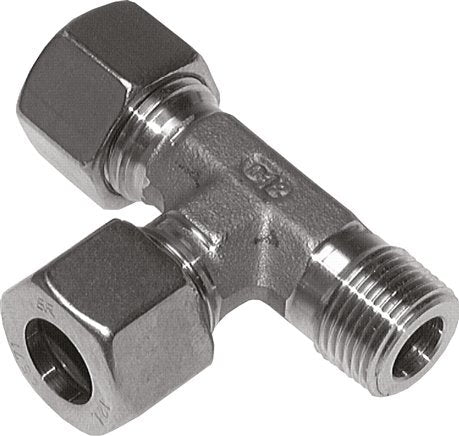

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a L-shape.
Notice: This product will be discontinued in the future
Description
Specifications
Related products
Description
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. Connection 1 is a 14 mm compression ring with a M22x1.5 union nut. Connection 2 is a 14 mm compression ring with a M22x1.5 union nut. Connection 3 has male M 20x1.5 (conical) threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
