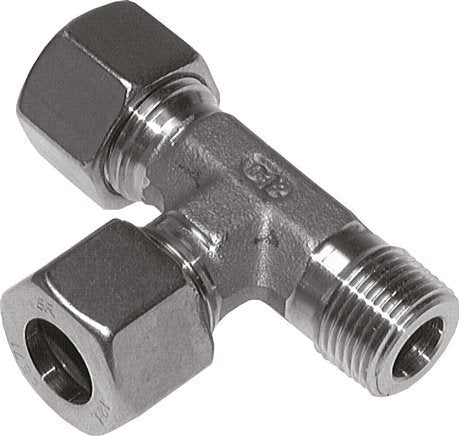

8L & 1/4'' NPT Stainless Steel Right Angle Tee Cutting Fitting with Male Threads 315 bar ISO 8434-1
Notice: This product is discontinued
Image may vary slightly
See specifications for accurate information.
Reference:
F2CGU
Brand:
Tameson
This stainless steel 1.4571 Tee screw connection is designed with Connection 1 is a 8 mm cutting ring with a M14x1.5 union nut. Connection 2 is a 8 mm
Notice: This product is discontinued
Description
Specifications
Description
This stainless steel 1.4571 Tee screw connection is designed with Connection 1 is a 8 mm cutting ring with a M14x1.5 union nut. Connection 2 is a 8 mm cutting ring with a M14x1.5 union nut. Connection 3 has male 1/4 inch NPT threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
