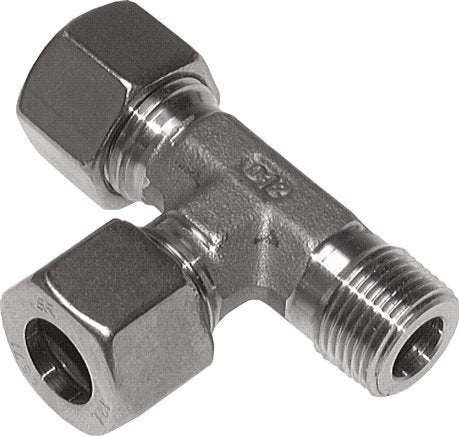

25S & G1'' Stainless Steel Right Angle Tee Compression Fitting with Male Threads 250 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2CHW
Brand:
Tameson
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a L-shape.
- Regular price
- £343.38
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days
Description
Specifications
Description
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. Connection 1 is a 25 mm compression ring with a M36x2 union nut. Connection 2 is a 25 mm compression ring with a M36x2 union nut. Connection 3 has male G 1 inch threads. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
