12S & G3/8'' Stainless Steel Right Angle Tee Compression Fitting with Male Threads 400 bar Adjustable ISO 8434-1
- Regular price
- £124.27
Description

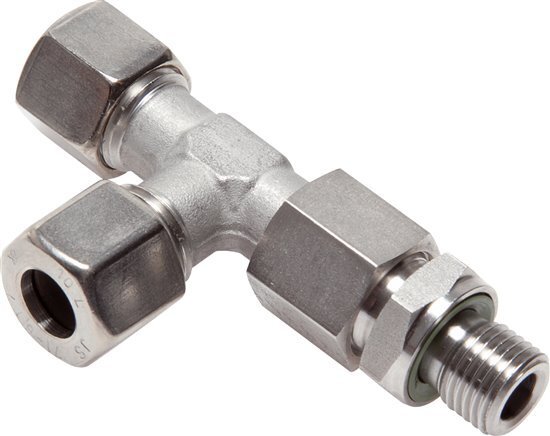

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. It has an adjustable connection. Connection 1 is a 12 mm compression ring with a M20x1.5 union nut. Connection 2 is a 12 mm compression ring with a M20x1.5 union nut. Connection 3 has male G 3/8 inch threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
