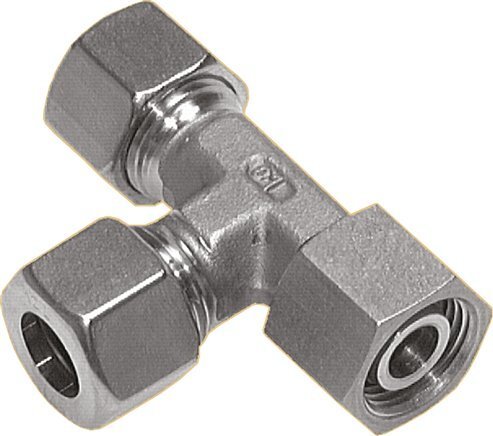

20S Stainless Steel Right Angle Tee Compression Fitting with Swivel 250 bar FKM Adjustable ISO 8434-1
Notice: This product is discontinued
This stainless steel 1.4571 Tee screw connection is designed with compression ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 20 mm compression ring with a M30x2 union nut. Connection 2 is a 20 mm compression ring with a M30x2 union nut. Connection 3 has a 20 mm swivel tube connection. The seal material is FKM. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Notice: This product is discontinued
Description
This stainless steel 1.4571 Tee screw connection is designed with compression ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 20 mm compression ring with a M30x2 union nut. Connection 2 is a 20 mm compression ring with a M30x2 union nut. Connection 3 has a 20 mm swivel tube connection. The seal material is FKM. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
