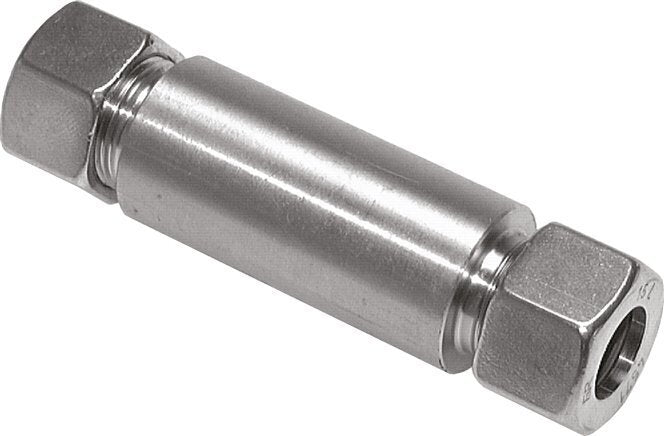

15L Stainless Steel Straight Welding Compression Fitting Bulkhead 315 bar ISO 8434-1

15L Stainless Steel Straight Welding Compression Fitting Bulkhead 315 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2CUR
Brand: Tameson

This stainless steel 1.4571 straight welding screw connection is designed with two compression ring connection points. Connection 1 is a 15 mm compression ring with a M22x1.5 union nut. Connection 2 is a 15 mm compression ring with a M22x1.5 union nut. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
Regular price
£75.94
excl VAT

In stock Ships in 0d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 2 - 4 business days

Description
Specifications

This stainless steel 1.4571 straight welding screw connection is designed with two compression ring connection points. Connection 1 is a 15 mm compression ring with a M22x1.5 union nut. Connection 2 is a 15 mm compression ring with a M22x1.5 union nut. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for use in gas and water area
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Cons:

  • Since it has a compression ring connection, it can only be used once
