42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1

42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
42x3mm Stainless Steel Straight with Welding End 160 bar FKMO-ring ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2CX7
Brand: Tameson

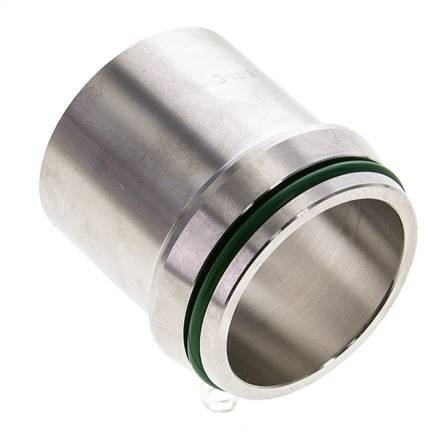

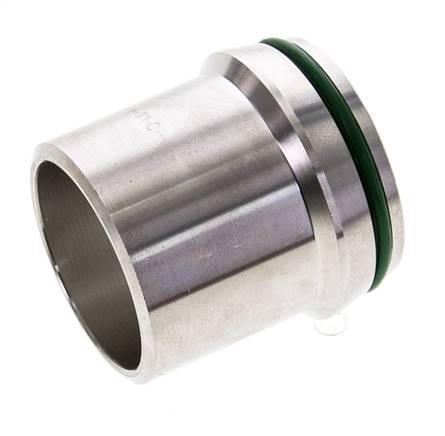

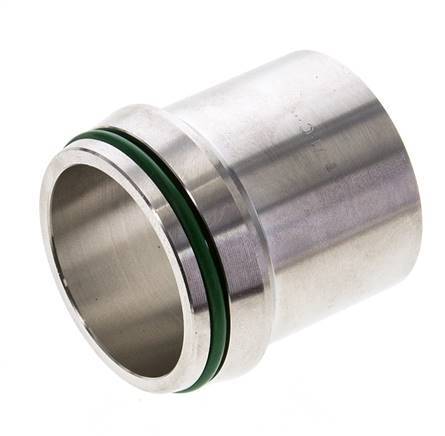

This stainless steel 1.4571 straight welding nipple is designed with connection for tube with outer diameter of 42 and wall thickness 3 mm. Connection 1 has a 42 mm welding connection. Connection 2. It has an o-ring for sealing. The seal material is FKM. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
£69.38
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

This stainless steel 1.4571 straight welding nipple is designed with connection for tube with outer diameter of 42 and wall thickness 3 mm. Connection 1 has a 42 mm welding connection. Connection 2. It has an o-ring for sealing. The seal material is FKM. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • With O-ring for sealing
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications
