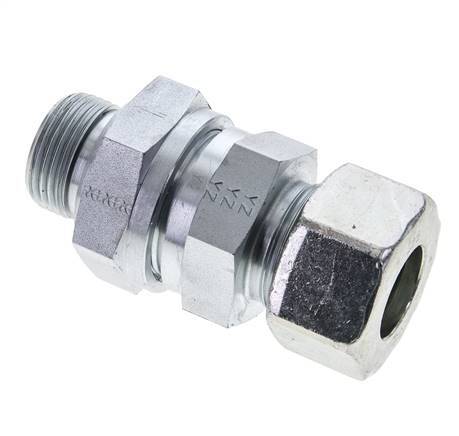

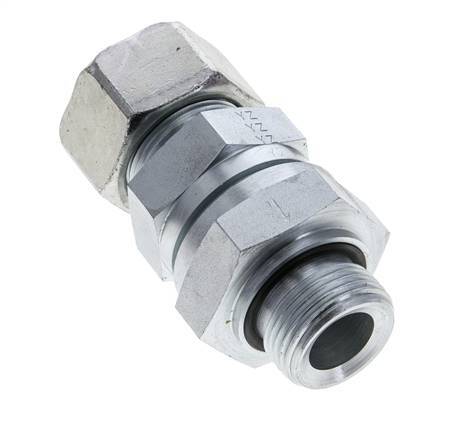

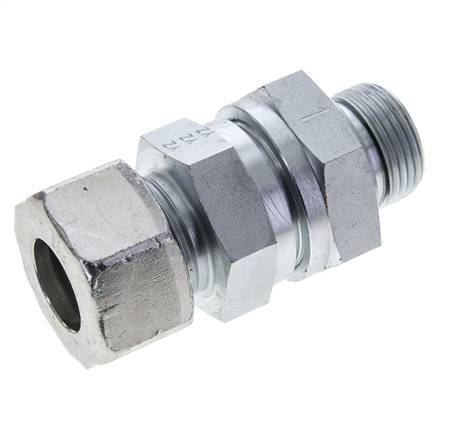

Hydraulic Check Valve Cutting Ring 25S (M36x2) & G1'' Male Steel 1-250bar (15-3625)psi Tube-Thread ISO 8434-1
This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. The flow direction is from tube to thread. Connection 1 has a 25 mm cutting ring with M36x2 union nut, rated for S (heavy) load classes. Connection 2 has G 1 inch male threads. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 1 to 250 bar (15 to 3625 psi). It is made in accordance with ISO 8434-1.
- Regular price
- £52.96
Description
This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. The flow direction is from tube to thread. Connection 1 has a 25 mm cutting ring with M36x2 union nut, rated for S (heavy) load classes. Connection 2 has G 1 inch male threads. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 1 to 250 bar (15 to 3625 psi). It is made in accordance with ISO 8434-1.
Pros:
- Adheres to ISO 8434-1
- Suitable for hydraulic applications
