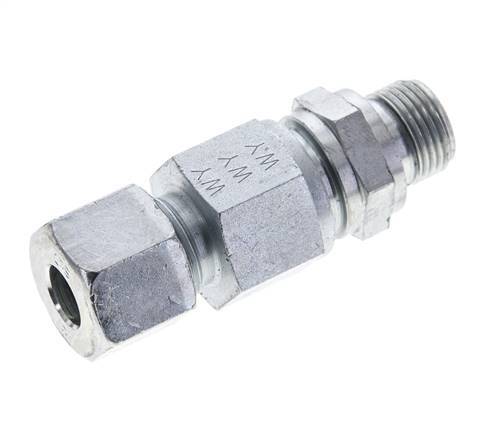

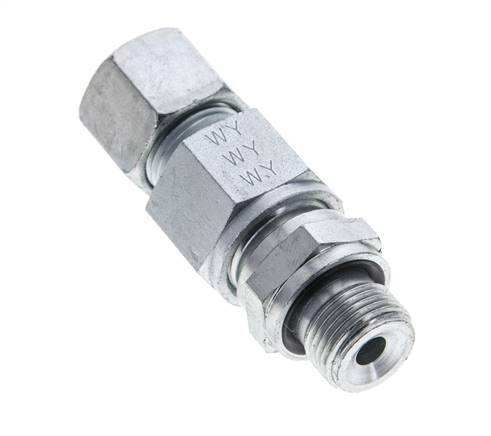

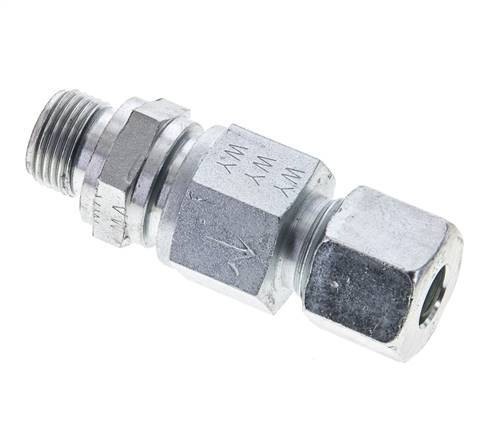

Hydraulic Check Valve Cutting Ring 10S (M18x1.5) & G3/8'' Male Steel 1-400bar (15-5800)psi Thread-Tube ISO 8434-1

Hydraulic Check Valve Cutting Ring 10S (M18x1.5) & G3/8'' Male Steel 1-400bar (15-5800)psi Thread-Tube ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2D3K
Brand: Tameson

This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. The flow direction is from thread to tube. Connection 1 has a 10 mm cutting ring with M18x1.5 union nut, rated for S (heavy) load classes. Connection 2 has G 3/8 inch male threads. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 1 to 400 bar (15 to 5800 psi). It is made in accordance with ISO 8434-1.

View all
Regular price
£16.17
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 11 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications

This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. The flow direction is from thread to tube. Connection 1 has a 10 mm cutting ring with M18x1.5 union nut, rated for S (heavy) load classes. Connection 2 has G 3/8 inch male threads. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 1 to 400 bar (15 to 5800 psi). It is made in accordance with ISO 8434-1.

Pros:

  • Adheres to ISO 8434-1
  • Suitable for hydraulic applications
