Hydraulic Check Valve Cutting Ring 14S (M22x1.5) & G1/2'' Male Stainless Steel 1-400bar (15-5800)psi Thread-Tube ISO 8434-1

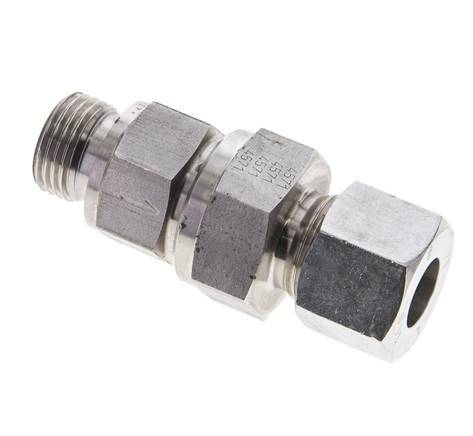

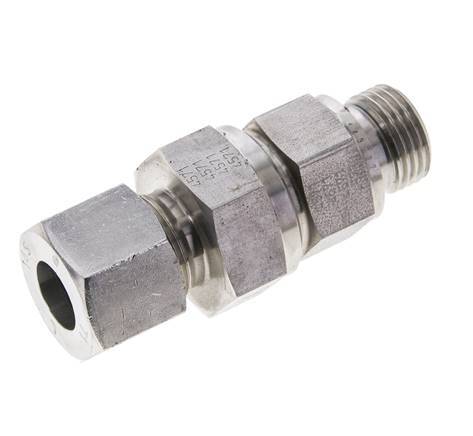

This is a stainless steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. The flow direction is from thread to tube. Connection 1 has a 14 mm cutting ring with M22x1.5 union nut, rated for S (heavy) load classes. Connection 2 has G 1/2 inch male threads. It has an FKM seal that makes it suitable for applications within a temperature range from -20 to 200 °C (-4 to 392 °F). The operating pressure range is 1 to 400 bar (15 to 5800 psi). It is made in accordance with ISO 8434-1.
- Regular price
- £113.25
Description
This is a stainless steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. The flow direction is from thread to tube. Connection 1 has a 14 mm cutting ring with M22x1.5 union nut, rated for S (heavy) load classes. Connection 2 has G 1/2 inch male threads. It has an FKM seal that makes it suitable for applications within a temperature range from -20 to 200 °C (-4 to 392 °F). The operating pressure range is 1 to 400 bar (15 to 5800 psi). It is made in accordance with ISO 8434-1.
Pros:
- Adheres to ISO 8434-1
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
