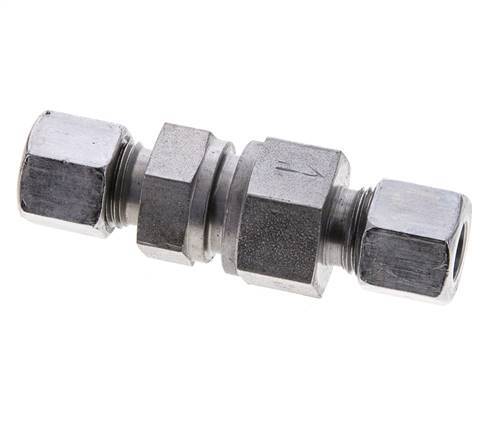

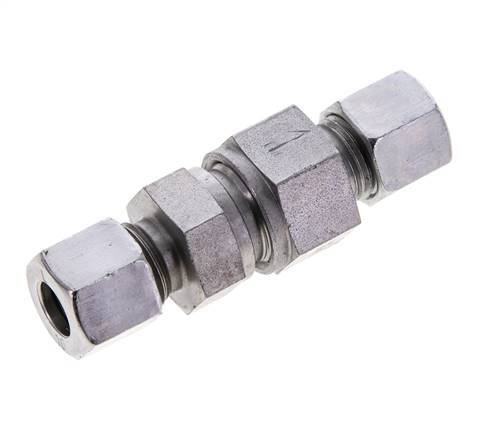

Hydraulic Check Valve Cutting Ring 10L (M16x1.5) Steel 0.5-250bar (7-3625)psi ISO 8434-1
This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 10 mm cutting ring with a M16x1.5 union nut on both sides. Rated for L (light) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 0.5 to 250 bar (7 to 3625 psi). It is made in accordance with ISO 8434-1.
- Regular price
- £19.08
Description
This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 10 mm cutting ring with a M16x1.5 union nut on both sides. Rated for L (light) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 0.5 to 250 bar (7 to 3625 psi). It is made in accordance with ISO 8434-1.
Pros:
- Adheres to ISO 8434-1
- Suitable for hydraulic applications
