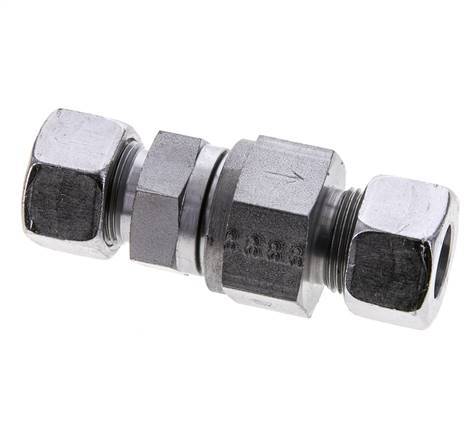

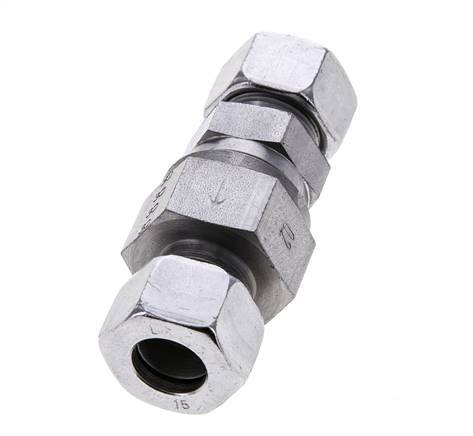

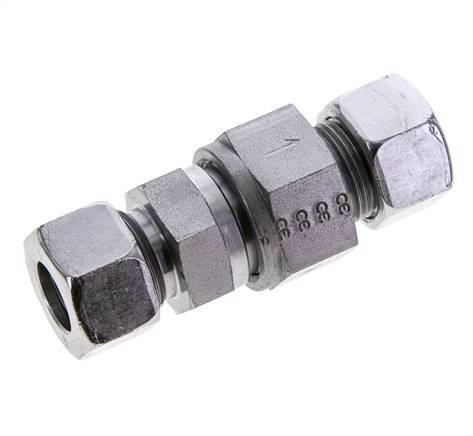

Hydraulic Check Valve Cutting Ring 15L (M22x1.5) Steel 0.2-250bar (3-3625)psi ISO 8434-1
This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 15 mm cutting ring with a M22x1.5 union nut on both sides. Rated for L (light) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 0.2 to 250 bar (3 to 3625 psi). It is made in accordance with ISO 8434-1.
- Regular price
- £27.69
Description
This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 15 mm cutting ring with a M22x1.5 union nut on both sides. Rated for L (light) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 0.2 to 250 bar (3 to 3625 psi). It is made in accordance with ISO 8434-1.
Pros:
- Adheres to ISO 8434-1
- Suitable for hydraulic applications
