Hydraulic Check Valve Cutting Ring 16S (M24x1.5) Steel 3-400bar (44-5800)psi ISO 8434-1

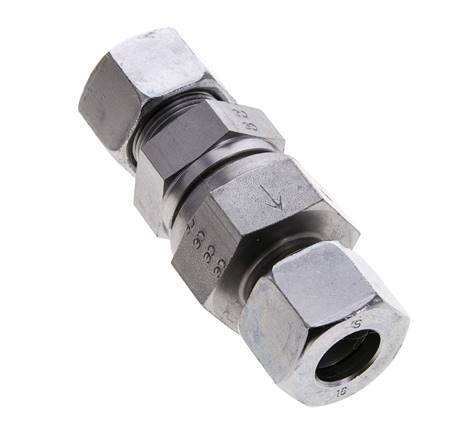

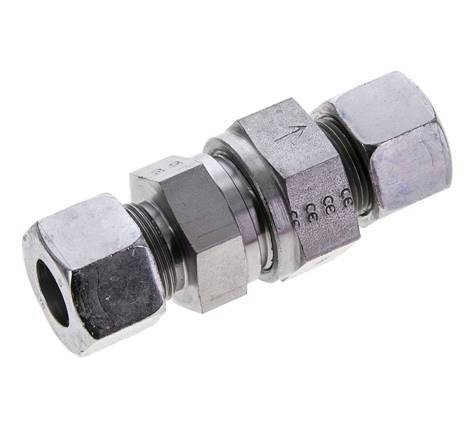

This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 16 mm cutting ring with a M24x1.5 union nut on both sides. Rated for S (heavy) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 3 to 400 bar (44 to 5800 psi). It is made in accordance with ISO 8434-1.
- Regular price
- £38.19
Description
This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 16 mm cutting ring with a M24x1.5 union nut on both sides. Rated for S (heavy) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 3 to 400 bar (44 to 5800 psi). It is made in accordance with ISO 8434-1.
Pros:
- Adheres to ISO 8434-1
- Suitable for hydraulic applications
