Hydraulic Check Valve Compression Ring 25S (M36x2) Stainless Steel 1-250bar (15-3625)psi ISO 8434-1

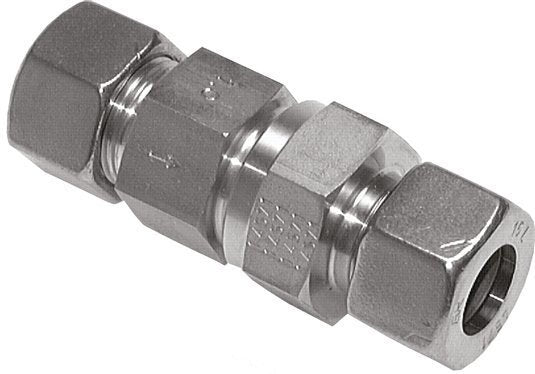

This is a stainless steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has 25 mm compression ring with a M36x2 union nut on both sides. Rated for S (heavy) load classes. It has an FKM seal that makes it suitable for applications within a temperature range from -20 to 200 °C (-4 to 392 °F). The operating pressure range is 1 to 250 bar (15 to 3625 psi). It is made in accordance with ISO 8434-1.
- Regular price
- £243.24
Description
This is a stainless steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has 25 mm compression ring with a M36x2 union nut on both sides. Rated for S (heavy) load classes. It has an FKM seal that makes it suitable for applications within a temperature range from -20 to 200 °C (-4 to 392 °F). The operating pressure range is 1 to 250 bar (15 to 3625 psi). It is made in accordance with ISO 8434-1.
Pros:
- Adheres to ISO 8434-1
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
