38S & M48x2 Zink plated Steel Swivel Joint Cutting Fitting with Male Threads DN 32250 bar NBR Rotatable ISO 8434-1

38S & M48x2 Zink plated Steel Swivel Joint Cutting Fitting with Male Threads DN 32250 bar NBR Rotatable ISO 8434-1
38S & M48x2 Zink plated Steel Swivel Joint Cutting Fitting with Male Threads DN 32250 bar NBR Rotatable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2D7V
Brand: Tameson

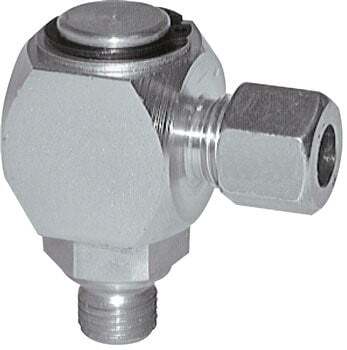

This zink plated steel elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is
View all
£510.28
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00 (excl VAT)
Expected delivery in 4 - 5 business days

Customers rate us: 4.84 / 5

544 reviews at TrustedShops

Description
Specifications

Description

This zink plated steel elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 38 mm cutting ring with a M52x2 union nut. Connection 2 has male M 48x2 threads. The seal material is NBR. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -20 to 100 °C (-4 to 212 °F). The nominal diameter is 32 mm. It can withstand 0.5 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Thread connection is rotatable
  • Suitable for hydraulic applications

Cons:

  • It is necessary to use a flexible connection

Specifications
