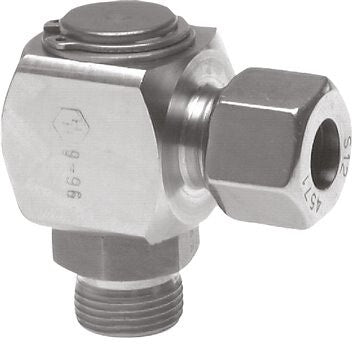

18L & M22x1.5 Stainless Steel Swivel Joint Cutting Fitting with Male Threads DN 13160 bar FKM Rotatable ISO 8434-1
This stainless steel 1.4404 elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 18 mm cutting ring with a M26x1.5 union nut. Connection 2 has male M 22x1.5 threads. The seal material is FKM. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -20 to 120 °C (-4 to 248 °F). The nominal diameter is 13 mm. It can withstand 1 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £789.28
Description
This stainless steel 1.4404 elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 18 mm cutting ring with a M26x1.5 union nut. Connection 2 has male M 22x1.5 threads. The seal material is FKM. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -20 to 120 °C (-4 to 248 °F). The nominal diameter is 13 mm. It can withstand 1 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Thread connection is rotatable
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- It is necessary to use a flexible connection
