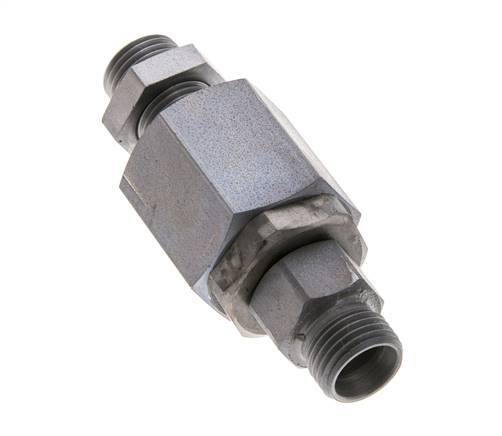

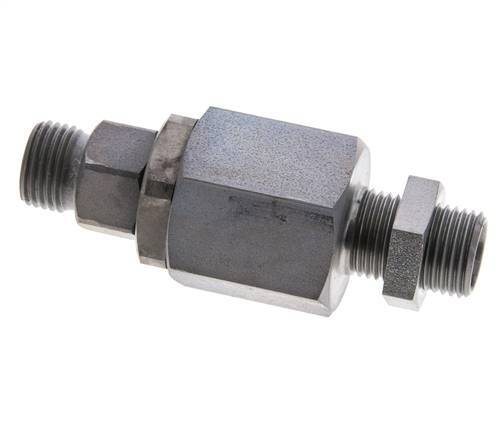

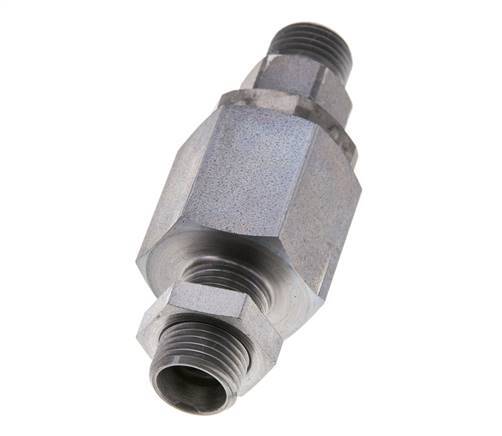

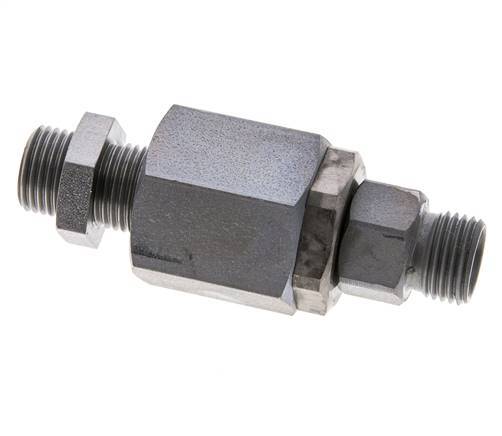

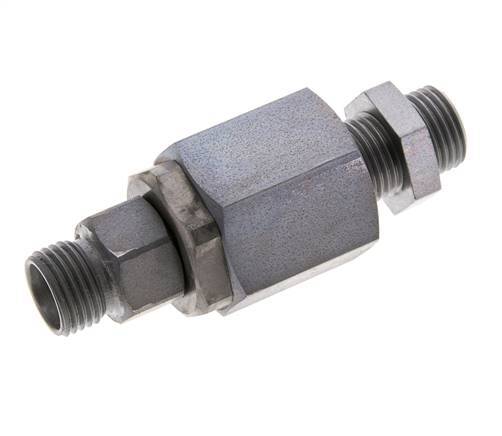

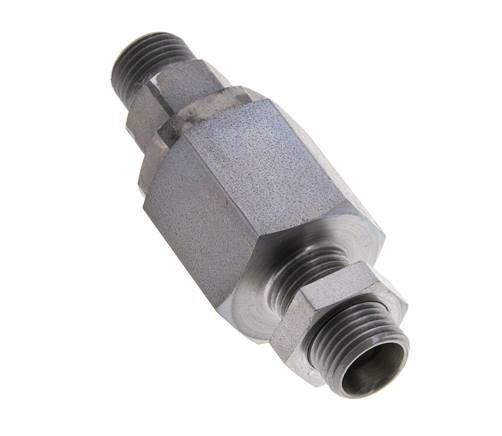

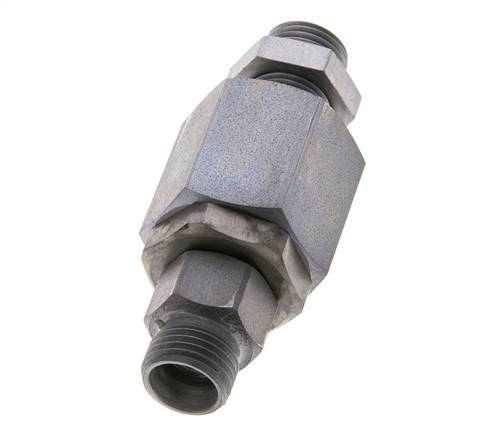

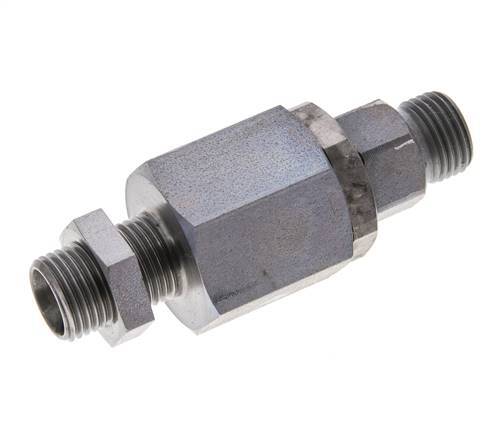

10L Zink plated Steel Ball-Guided Swivel Joint Cutting Fitting Bulkhead 315 bar NBR ISO 8434-1
This zink plated steel straight ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 10 mm cutting ring with a M16x1.5 union nut. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The bulkhead thread has an M 16x1,5 thread with a length of 8 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £211.04
Description
This zink plated steel straight ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 10 mm cutting ring with a M16x1.5 union nut. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The bulkhead thread has an M 16x1,5 thread with a length of 8 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for hydraulic applications
