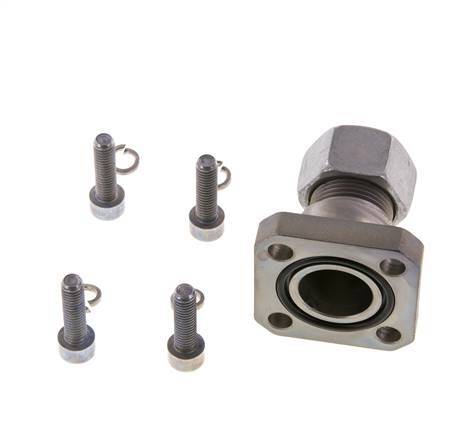

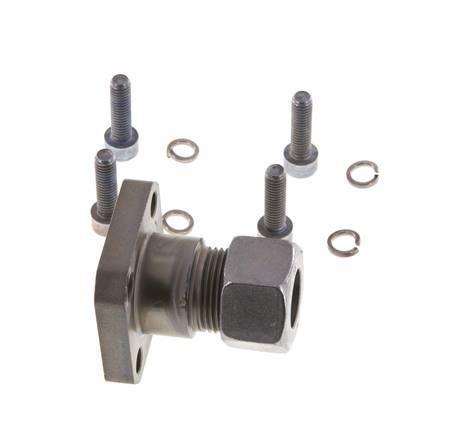

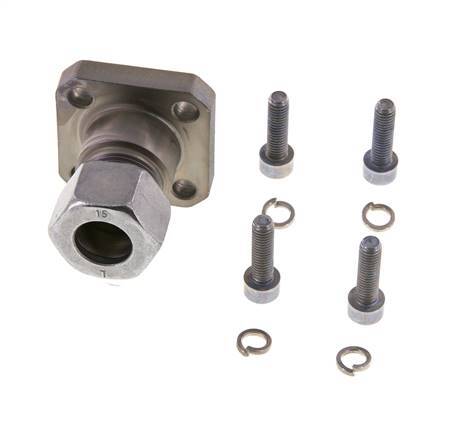

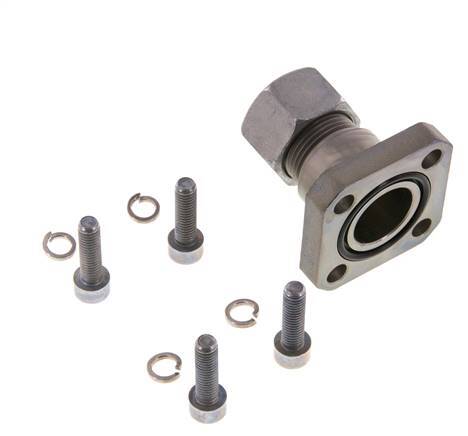

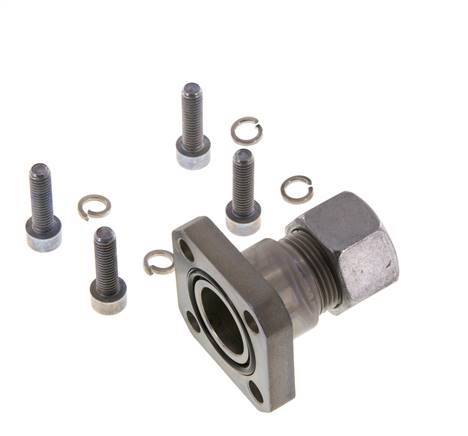

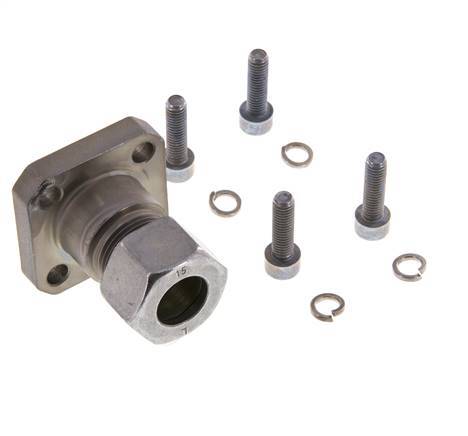

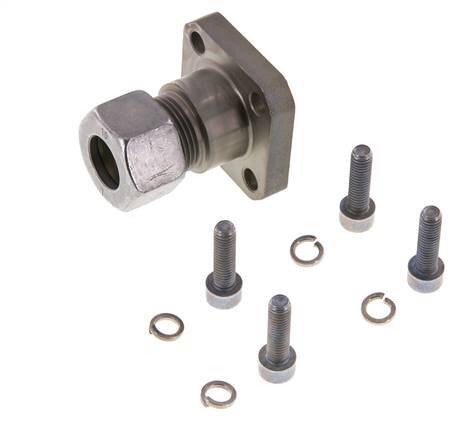

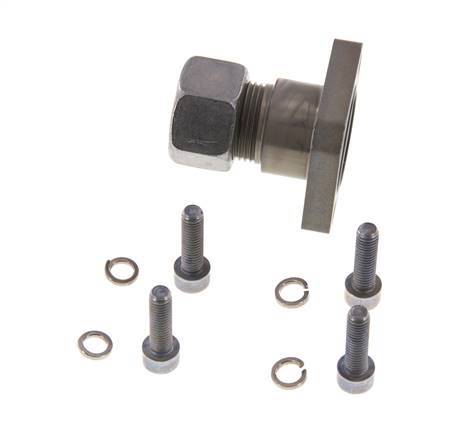

LK 40 Pump Flange Steel with 15L (M22x1.5)
This is a square pump flange with a cutting ring connection port. The flange connection point is an LK 40 flange size (square hole pattern). Connection 2 is a 15 mm cutting ring with an M22x1.5 union nut. The body is made of zinc plated steel with an NBR seal. The maximum pressure is 100 bar (1450 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The four M6x22 bolts are included.
- Regular price
- £21.14
Description
This is a square pump flange with a cutting ring connection port. The flange connection point is an LK 40 flange size (square hole pattern). Connection 2 is a 15 mm cutting ring with an M22x1.5 union nut. The body is made of zinc plated steel with an NBR seal. The maximum pressure is 100 bar (1450 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The four M6x22 bolts are included.
Pros:
- Suitable for hydraulic applications
