Image may vary slightly
See specifications for accurate information.
Reference: F2DCR
Brand: Tameson

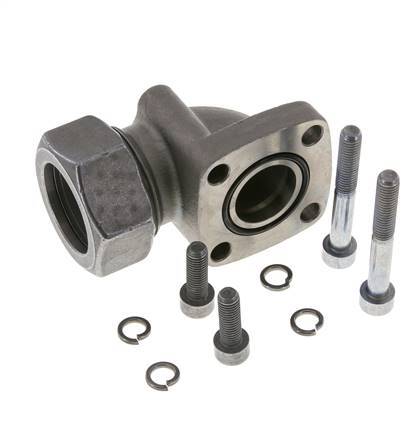

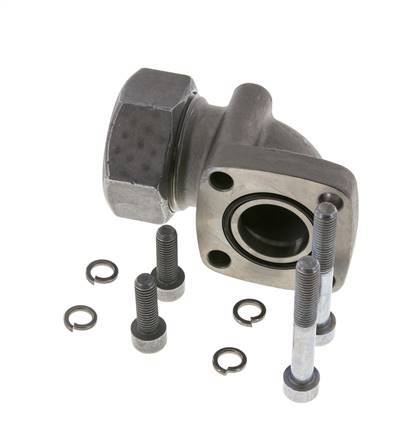

This is an elbow square pump flange with a cutting ring connection port. The flange connection point is an LK 55 flange size (square hole pattern). Connection 2 is a 35 mm cutting ring with an M45x2 union nut. The body is made of zinc plated malleable cast iron with an NBR seal. The maximum pressure is 100 bar (1450 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The two M8x25 bolts and two M8x60 bolts are included.

View all
£72.44
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is an elbow square pump flange with a cutting ring connection port. The flange connection point is an LK 55 flange size (square hole pattern). Connection 2 is a 35 mm cutting ring with an M45x2 union nut. The body is made of zinc plated malleable cast iron with an NBR seal. The maximum pressure is 100 bar (1450 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The two M8x25 bolts and two M8x60 bolts are included.

Pros:

  • Suitable for hydraulic applications

Downloads

Specifications

Union nut thread
Thread size of the union nut
M45 x 2
Load class (DIN 2353)
L (light)
Pump flange
LK 55
Cutting ring connection (mm)
Size of the cutting ring connection
35
Connection type
Cutting ring, Flange
Material
Housing material.
Malleable cast iron
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
100
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-30
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
90
Material connection 1
Malleable cast iron
Surface protection connection 1
Galvanic zink plated
Material connection 2
Malleable cast iron
Surface protection connection 2
Galvanic zink plated
Shape
Elbow
Bend angle (°)
90
With drain
No
