3/4'' Elbow SAE Flange 3000 PSI Steel with 22L (M30x2) ISO 6162-1

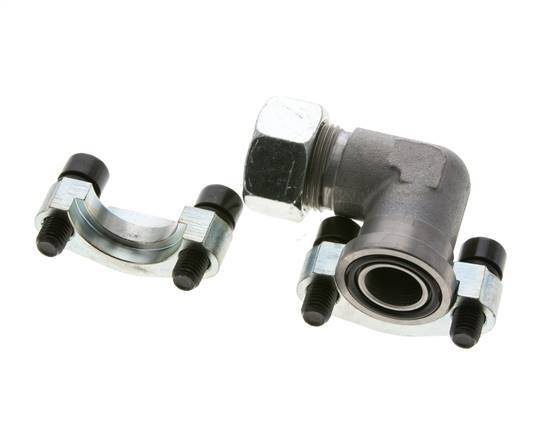

This is an elbow SAE flange with a cutting ring connection port. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 3/4 inch. Connection 2 is a 22 mm cutting ring with an M30x2 union nut. It has a flange diameter of 38.1 mm. The body is made of zinc plated steel with an NBR seal. The maximum pressure is 160 bar (2320 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.
- Regular price
- £82.91
Description
This is an elbow SAE flange with a cutting ring connection port. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 3/4 inch. Connection 2 is a 22 mm cutting ring with an M30x2 union nut. It has a flange diameter of 38.1 mm. The body is made of zinc plated steel with an NBR seal. The maximum pressure is 160 bar (2320 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.
Pros:
- Adheres to ISO 6162-1
- Suitable for hydraulic applications
