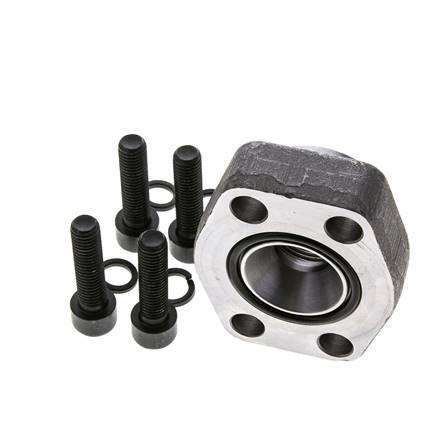

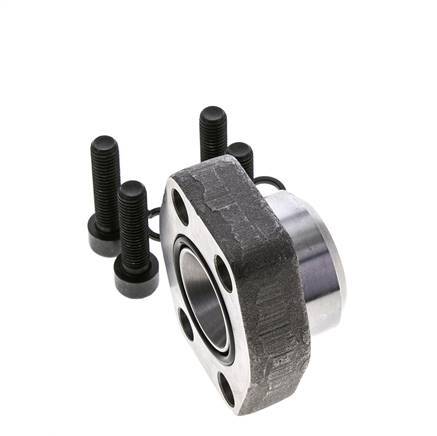

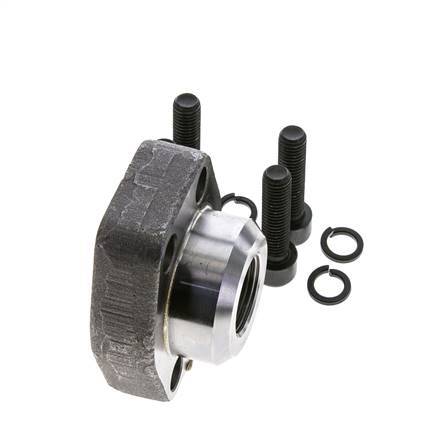

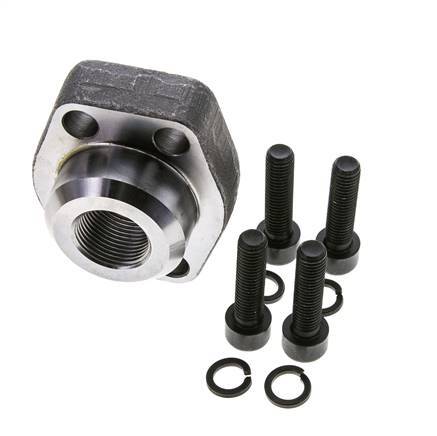

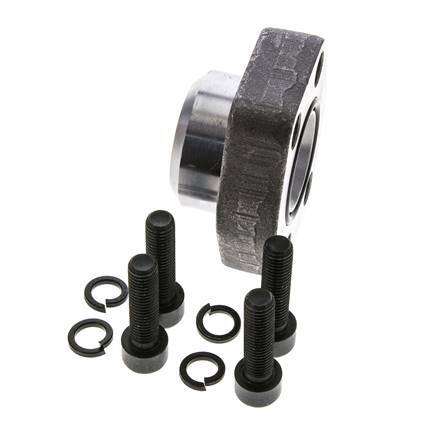

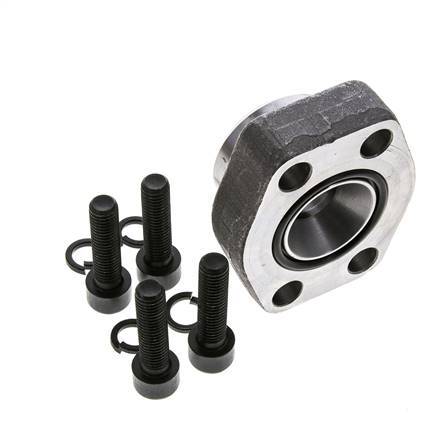

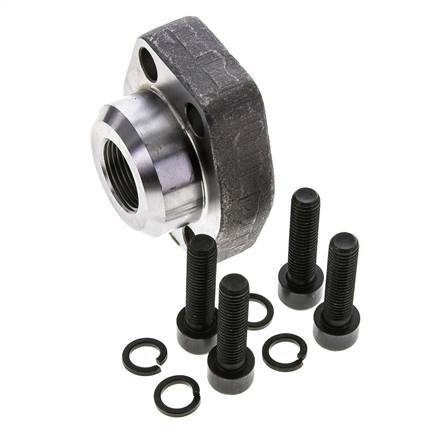

1-1/4'' SAE Flange 3000 PSI Plain Steel with G3/4'' Female Threads ISO 6162-1
This is an SAE flange with a female thread connection. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1-1/4 inch. Connection 2 has G 3/4" female threads. The body is made of plain steel with an NBR seal. The maximum pressure is 280 bar (4060 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.
- Regular price
- £50.46
Description
This is an SAE flange with a female thread connection. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1-1/4 inch. Connection 2 has G 3/4" female threads. The body is made of plain steel with an NBR seal. The maximum pressure is 280 bar (4060 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.
Pros:
- Adheres to ISO 6162-1
- Suitable for hydraulic applications
