2'' SAE Flange Halves 3000 PSI Steel ISO 6162-1

2'' SAE Flange Halves 3000 PSI Steel ISO 6162-1
2'' SAE Flange Halves 3000 PSI Steel ISO 6162-1
Image may vary slightly
See specifications for accurate information.
Reference: F2DH3
Brand: Tameson

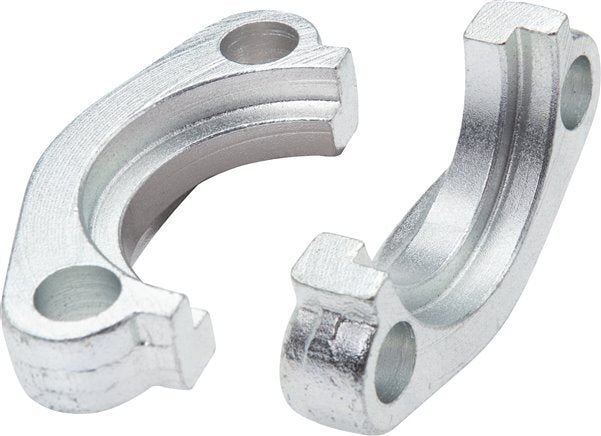

These are SAE flange halves for SAE fittings with a flange diameter of 71.4 mm. They adhere to SAE Code 61 (3000 psi working pressure) and have an SAE-4 mounting pattern size of 2 inch. The body is made of zinc plated steel. The maximum pressure is 200 bar (2900 psi). It is made in accordance with the ISO 6162-1.

Note: The operating pressure is dependent on the strength of the screws.

View all
£21.96
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 48 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications
Related products

Description

These are SAE flange halves for SAE fittings with a flange diameter of 71.4 mm. They adhere to SAE Code 61 (3000 psi working pressure) and have an SAE-4 mounting pattern size of 2 inch. The body is made of zinc plated steel. The maximum pressure is 200 bar (2900 psi). It is made in accordance with the ISO 6162-1.

Note: The operating pressure is dependent on the strength of the screws.

Pros:

  • Adheres to ISO 6162-1
  • Suitable for hydraulic applications

Specifications

Materiali
Steel
SAE - hole pattern
2 inch - SAE (3000 PSI)
Number of bolt holes
4
Diameter bolt hole
13.5 mm
Max pressure
200 bar
Surface protectioni
Galvanic zink plated
Standardi
ISO 6162-1
