1-1/2'' SAE Flange Halves 6000 PSI Steel ISO 6162-2

1-1/2'' SAE Flange Halves 6000 PSI Steel ISO 6162-2
1-1/2'' SAE Flange Halves 6000 PSI Steel ISO 6162-2
Image may vary slightly
See specifications for accurate information.
Reference: F2DH9
Brand: Tameson

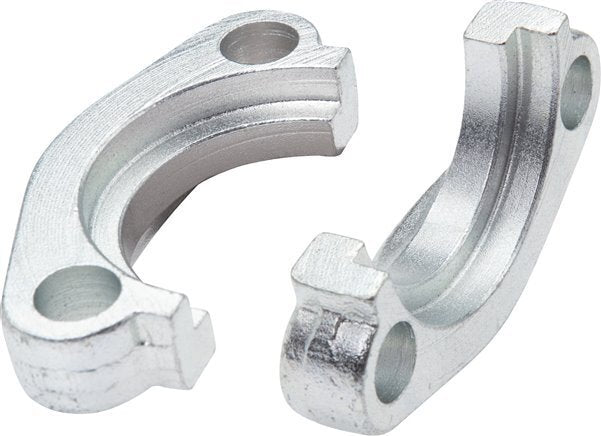

These are SAE flange halves for SAE fittings with a flange diameter of 63.5 mm. They adhere to SAE Code 62 (6000 psi working pressure) and have an SAE-4 mounting pattern size of 1-1/2 inch. The body is made of zinc plated steel. The maximum pressure is 400 bar (5800 psi). It is made in accordance with the ISO 6162-2.

Note: The operating pressure is dependent on the strength of the screws.

View all
£38.16
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 83 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

These are SAE flange halves for SAE fittings with a flange diameter of 63.5 mm. They adhere to SAE Code 62 (6000 psi working pressure) and have an SAE-4 mounting pattern size of 1-1/2 inch. The body is made of zinc plated steel. The maximum pressure is 400 bar (5800 psi). It is made in accordance with the ISO 6162-2.

Note: The operating pressure is dependent on the strength of the screws.

Pros:

  • Adheres to ISO 6162-2
  • Suitable for hydraulic applications

Downloads

Specifications

Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
SAE - hole pattern
1-1/2 inch - SAE (6000 PSI)
Number of bolt holes
4
Diameter bolt hole (mm)
17
Max pressure (bar)
400
Surface protection
The type of surface protection of the component.
Galvanic zink plated
Standard
Meet the requirements of an ISO or DIN Standard
ISO 6162-2
