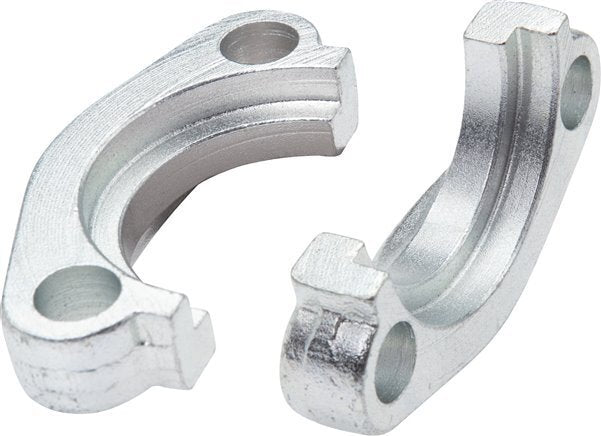

1'' SAE Flange Halves 6000 PSI Stainless Steel ISO 6162-2
These are SAE flange halves for SAE fittings with a flange diameter of 47.6 mm. They adhere to SAE Code 62 (6000 psi working pressure) and have an SAE-4 mounting pattern size of 1 inch. The body is made of stainless steel. The maximum pressure is 400 bar (5800 psi). It is made in accordance with the ISO 6162-2.
Note: The operating pressure is dependent on the strength of the screws.
- Regular price
- £134.29
Description
These are SAE flange halves for SAE fittings with a flange diameter of 47.6 mm. They adhere to SAE Code 62 (6000 psi working pressure) and have an SAE-4 mounting pattern size of 1 inch. The body is made of stainless steel. The maximum pressure is 400 bar (5800 psi). It is made in accordance with the ISO 6162-2.
Note: The operating pressure is dependent on the strength of the screws.
Pros:
- Adheres to ISO 6162-2
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
