Image may vary slightly
See specifications for accurate information.
Reference: F2ECK
Brand: Tameson

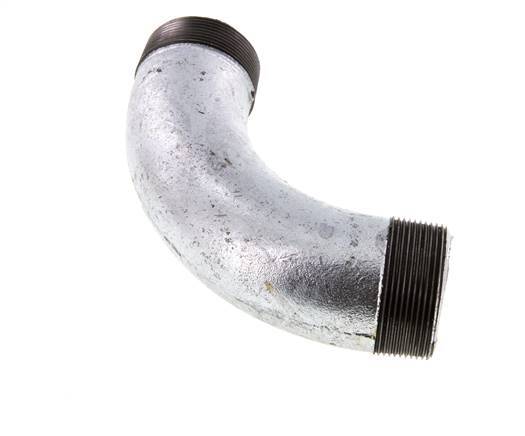

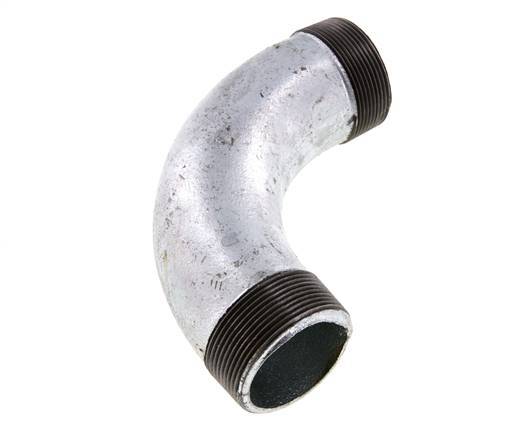

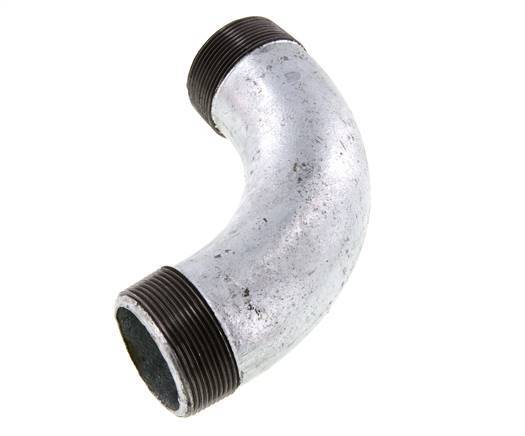

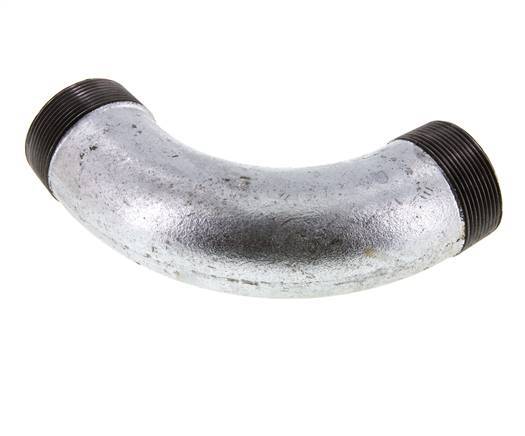

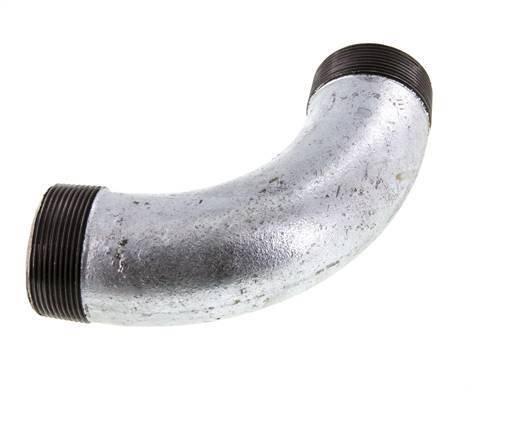

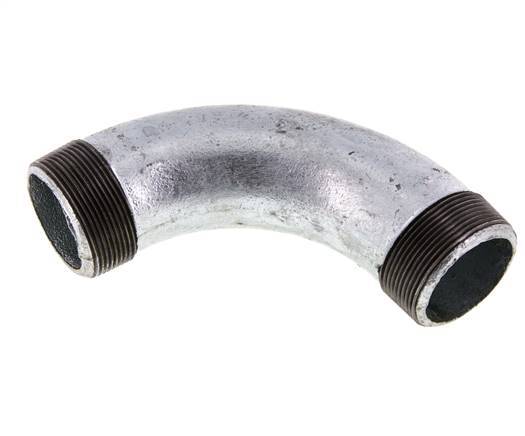

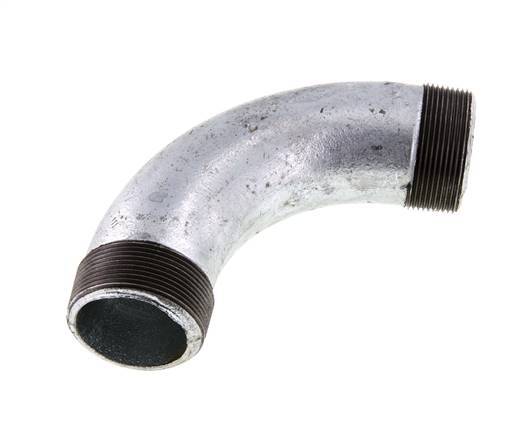

This 90-degree elbow pipe with male threads is used to connect two female threaded pipes or components. It is used in low-pressure applications up to 25 bar (351.25 psi). It is made of malleable cast iron and has a zinc coating for corrosion protection. Due to the large radius on the elbow, there is minimal pressure loss. It is suitable for steam, water, and air.

View all
£32.02
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 33 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This 90-degree elbow pipe with male threads is used to connect two female threaded pipes or components. It is used in low-pressure applications up to 25 bar (351.25 psi). It is made of malleable cast iron and has a zinc coating for corrosion protection. Due to the large radius on the elbow, there is minimal pressure loss. It is suitable for steam, water, and air.

Downloads

Specifications

Thread
2 inch
Connection type
Outer thread conical BSPT-R
Material
Housing material.
Malleable cast iron
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
25
Length (mm)
130
Material connection 1
Malleable cast iron
Surface protection connection 1
Galvanic zink plated
Material connection 2
Malleable cast iron
Surface protection connection 2
Galvanic zink plated
Shape
Elbow
Bend angle (°)
90
With drain
No
