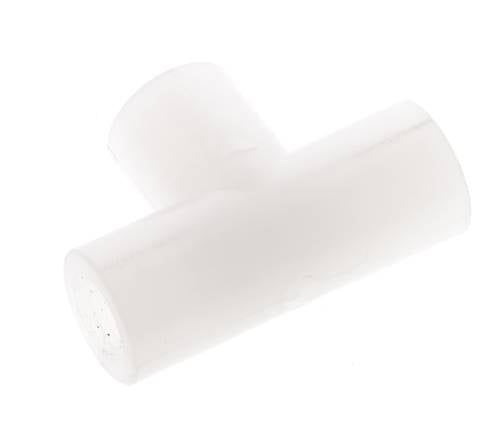

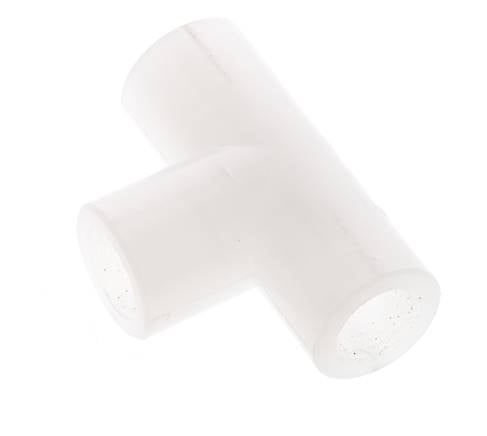

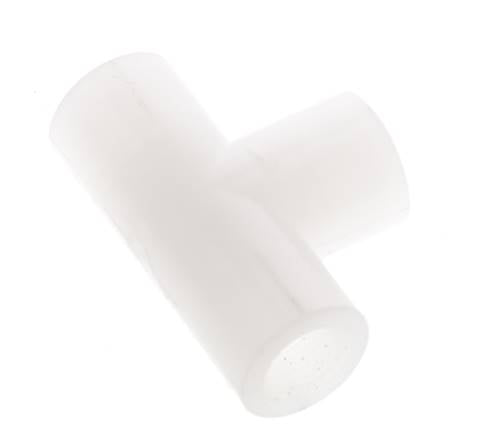

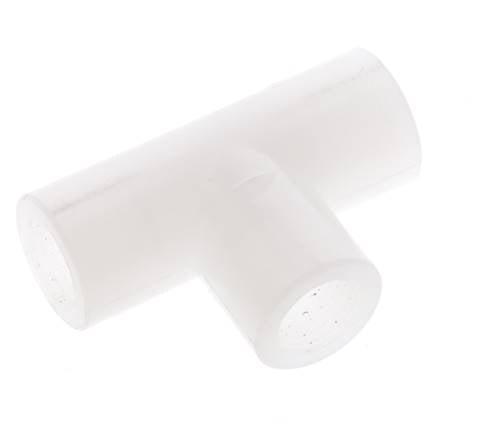

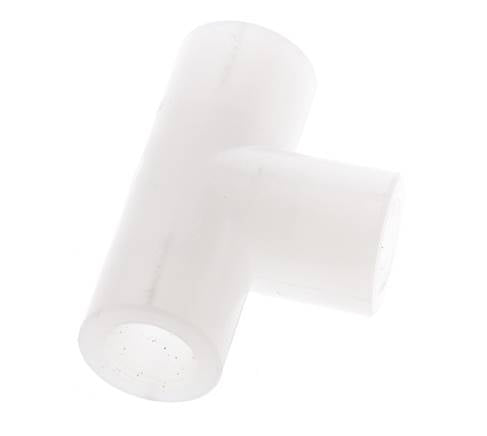

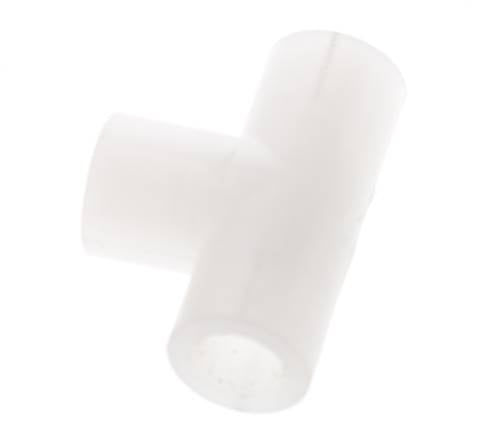

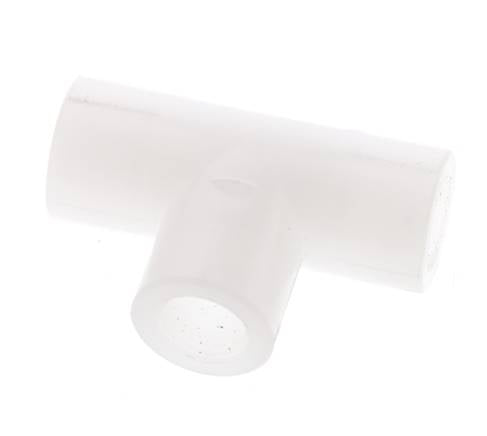

Tee Fitting G1/8'' Female Polyvinylidene fluoride (pvdf) FDA 10bar (140.5psi)

Tee Fitting G1/8'' Female Polyvinylidene fluoride (pvdf) FDA 10bar (140.5psi)
Tee Fitting G1/8'' Female Polyvinylidene fluoride (pvdf) FDA 10bar (140.5psi)
Image may vary slightly
See specifications for accurate information.
Reference: F2FYP
Brand: Tameson

This tee fitting is made of PVDF (polyvinylidene fluoride) which makes it suitable for applications within a temperature range from -40 to 140 °C (-40 to 284 °F). The maximum operating pressure is 10 bar (140.5 psi). The body material is FDA approved.

Note: Never use plastic pipe fittings and pipes with compressed air or gas. For plastic-to-plastic threaded connections, it is not recommended to use tape or sealant containing PTFE.

View all
£86.16
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This tee fitting is made of PVDF (polyvinylidene fluoride) which makes it suitable for applications within a temperature range from -40 to 140 °C (-40 to 284 °F). The maximum operating pressure is 10 bar (140.5 psi). The body material is FDA approved.

Note: Never use plastic pipe fittings and pipes with compressed air or gas. For plastic-to-plastic threaded connections, it is not recommended to use tape or sealant containing PTFE.

Downloads

Specifications

Thread
1/8 inch
Connection type
Inner thread cylindrical BSPP-G
Material
Housing material.
Polyvinylidene fluoride (PVDF)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
10
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-40
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
140
Approval
Certifications or approvals indicating safety, quality, or performance standards met.
FDA
Model
T-piece
Material connection 1
Polyvinylidene fluoride (PVDF)
Material connection 2
Polyvinylidene fluoride (PVDF)
Material connection 3
Polyvinylidene fluoride (PVDF)
Angle adjustable
No
With drain
No
